CAMOZZI FITTING ART.6590

Code: CL659012
€5.10
VAT excluded: €4.18
Size : HOSE 12
In stock 17 pieces in stock Ships in 24/48 hours

Description

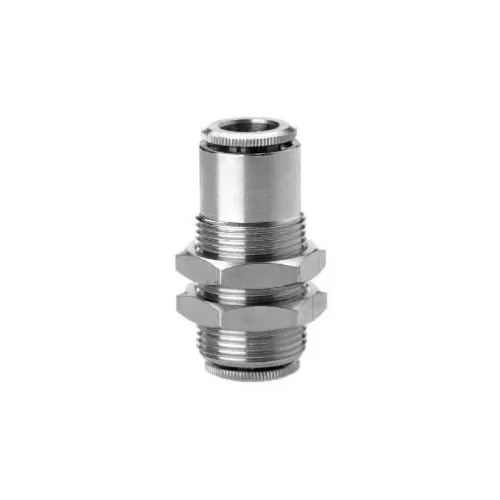

Bulkhead Push-In Fitting Camozzi Series 6000 - Item No. 6590


Camozzi 6590 bulkhead fitting, belonging to the Series 6000 of super-rapid nickel-plated brass fittings. The internal clamp grips the tube evenly over the whole surface and keeps the seal even after repeated insertions and releases, which are done by hand, without tools. It is designed for compressed air with PA, PU, PE and Hytrel polyester tubes. It is fixed in a panel hole with the nut on the threaded body, M10x1 for the 4 tube and M20x1 for the 12 tube: the line passes through the wall neatly.

Technical Specifications

  • Type: Bulkhead, push-in (tube-tube)
  • Tube: 4 or 12 mm, among the variants
  • Body thread: M10x1 (4 tube), M20x1 (12 tube)
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: 6590
  • Brand: CAMOZZI

Applications and Uses

  • Passing lines through cabinets and housings
  • Automatic machines, test benches and pneumatic panels
  • Control panels

More details

Brand
CAMOZZI
Code
CL659012
Manufacturer code
6590 12
