CAMOZZI FITTING ART.6811

Code: CL6811618
€0.98
VAT excluded: €0.80
Size : 1/8"-IN.6
In stock 64 pieces in stock Ships in 24/48 hours

Description

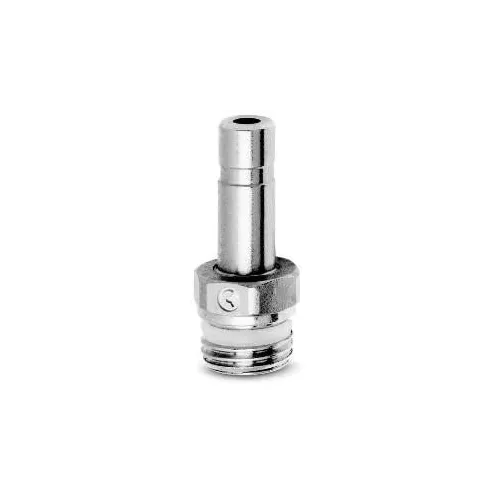

Sprint Male Adapter Camozzi Series 6000 - Item No. 6811


Camozzi 6811 Sprint metric male adapter, belonging to the Series 6000 of super-rapid nickel-plated brass fittings. The internal clamp grips the tube evenly over the whole surface and keeps the seal even after repeated insertions and releases, which are done by hand, without tools. It is designed for compressed air with PA, PU, PE and Hytrel polyester tubes. One side has the spigot to insert into a push-in fitting, the other a male thread with a Sprint PTFE ring: it turns a push-in connection into a threaded port.

Technical Specifications

  • Type: Male adapter with plug-in spigot
  • Thread seal: Sprint PTFE ring
  • Sizes: 8-1/4, 6-1/8, 8-1/8, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: 6811
  • Brand: CAMOZZI

Applications and Uses

  • Connecting threaded components to push-in fittings
  • Maintenance and repair of pneumatic circuits
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL6811618
Manufacturer code
6811 6-1/8
