CAMOZZI FITTING ART.6512

Code: CL65123M5
€2.30
VAT excluded: €1.89
Size : 3-M5
In stock 13 pieces in stock Ships in 24/48 hours

Description

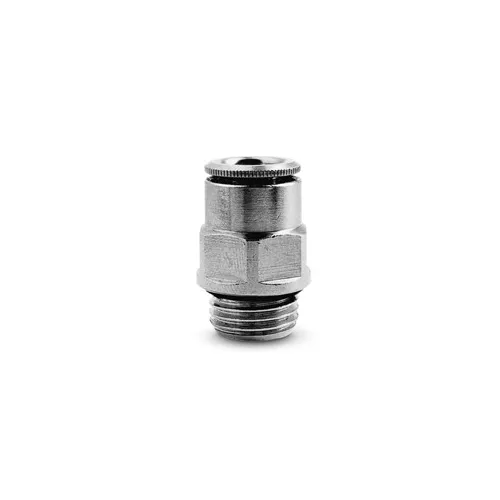

Micro Straight Male Fitting Camozzi Tube 3 - M5 - Item No. 6512 3-M5


Camozzi 6512 3-M5 micro straight male fitting, from the Series 6000 of super-rapid nickel-plated brass fittings for plastic tubes. The tube is pushed in by hand as far as it goes and a special clamp holds it with an even seal over the whole surface, reliable even after many insertions; the tube is connected and disconnected without tools. It is used with polyamide, polyurethane, polyethylene or Hytrel polyester tubes, with compressed air. Micro version with M5 male thread and sealing O-ring and connection for 3 mm tube: it screws by hand into micro valves, nozzles and sensors. Weight 1 g.

Technical Specifications

  • Type: Micro straight male push-in
  • Tube: 3 mm
  • Thread: M5 with O-ring
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -10 to 80 °C (micro versions)
  • Weight: 1 g
  • Item No.: 6512 3-M5
  • Brand: CAMOZZI

Applications and Uses

  • Pneumatic micro components and nozzles
  • Instrumentation and small automation
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL65123M5
Manufacturer code
6512 3-M5

Attachments

Recommended accessories and spare parts

MONTREAL/18 HOSE 6X14

€1.50
AVAILABLE
Availability: 249 In stock

Sati Group ARIA/LN 6x14 rubber compressed air hose: 6 mm inside and 14 mm outside diameter, textile reinforcement, SBR/EPDM cover resistant to abrasion and ozone, ISO 1307, from -25 to 70 °C.
