CAMOZZI FITTING ART.6512

Code: CL65124M5
€1.20
VAT excluded: €0.98
Size : 4-M5
In stock 6 pieces in stock Ships in 24/48 hours

Description

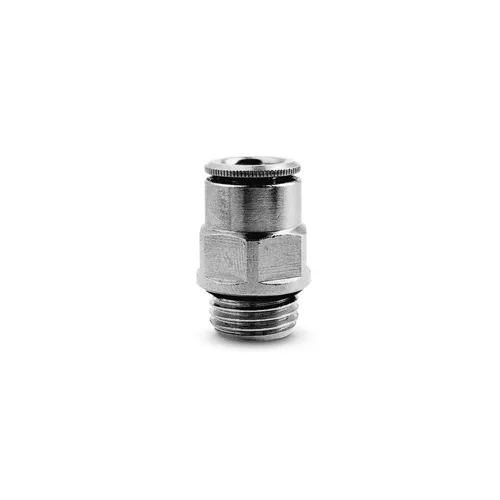

Straight Male Push-In Fitting Camozzi Tube 4 - M5/M6 - Item No. 6512


Camozzi 6512 straight male fitting, belonging to the Series 6000 of super-rapid nickel-plated brass fittings. The internal clamp grips the tube evenly over the whole surface and keeps the seal even after repeated insertions and releases, which are done by hand, without tools. It is designed for compressed air with PA, PU, PE and Hytrel polyester tubes. It connects a 4 mm tube to an M5 or M6 metric threaded hole, typical of mini cylinders, micro valves and sensors. Weight 4 g in M5 and 6 g in M6.

Technical Specifications

  • Type: Straight male push-in
  • Tube: 4 mm
  • Thread: M5 or M6, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6512
  • Brand: CAMOZZI

Applications and Uses

  • Mini cylinders and micro valves with metric port
  • Automatic machines, test benches and pneumatic panels
  • Compact pneumatic circuits

More details

Brand
CAMOZZI
Code
CL65124M5
Manufacturer code
6512 4-M5
