CAMOZZI FITTING ART.6610

Code: CL66101014
€2.80
VAT excluded: €2.30
Size : 10-1/4"
In stock 51 pieces in stock Ships in 24/48 hours

Description

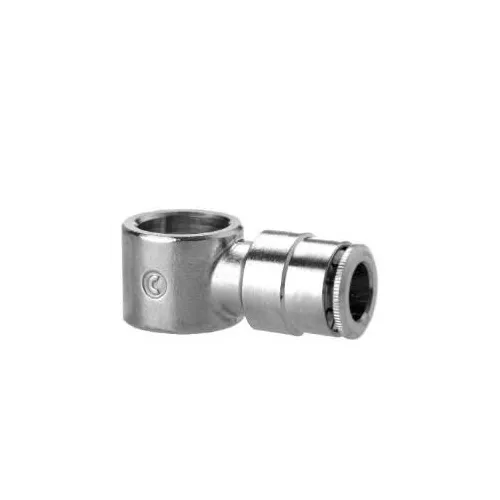

Single Swivel Ring Push-In Fitting Camozzi - Item No. 6610


Camozzi 6610 single swivel ring, part of the Series 6000 of super-rapid nickel-plated brass push-in fittings. The tube goes in by hand and a special clamp holds it, distributing the seal over the whole surface, with a long life even if it is inserted and released often, always without tools. It works with compressed air and PA, PU, PE or Hytrel tubes. It is mounted with a Mod. 1631 or 1635 hollow screw, or on SCU, SVU and SCO flow regulators, and is oriented before tightening. Variants for 6, 8 or 10 mm tube.

Technical Specifications

  • Type: Single swivel ring (banjo), push-in
  • Mounting: Hollow screw Mod. 1631 or 1635, SCU, SVU, SCO regulators
  • Tube and thread: selectable among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: 6610
  • Brand: CAMOZZI

Applications and Uses

  • Swivel outlets on cylinders and valves
  • Mounting on Camozzi flow regulators
  • Automatic machines, test benches and pneumatic panels
