CAMOZZI FITTING ART.6580

Code: CL658010
€2.70
VAT excluded: €2.21
Size : HOSE 10
In stock 45 pieces in stock Ships in 24/48 hours

Description

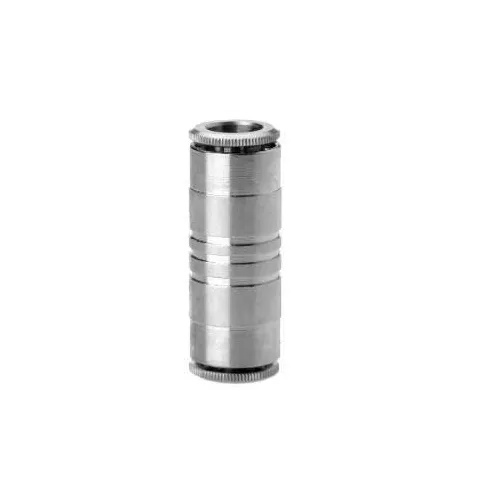

Straight Union Push-In Fitting Camozzi Series 6000 - Item No. 6580


Camozzi 6580 straight union, from the Series 6000 of super-rapid nickel-plated brass fittings for plastic tubes. The tube is pushed in by hand as far as it goes and a special clamp holds it with an even seal over the whole surface, reliable even after many insertions; the tube is connected and disconnected without tools. It is used with polyamide, polyurethane, polyethylene or Hytrel polyester tubes, with compressed air. It joins two lengths of tube of the same diameter in a straight line: it is used to extend a line or repair a cut tube. Tube from 3 to 14 mm.

Technical Specifications

  • Type: Straight union, push-in (tube-tube)
  • Tube: from 3 to 14 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6580
  • Brand: CAMOZZI

Applications and Uses

  • Joining and repairing plastic tubes
  • Maintenance and repair of pneumatic circuits
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL658010
Manufacturer code
6580 10

Attachments

Recommended accessories and spare parts

Reviews (0)
No customer reviews for the moment.
