CAMOZZI FITTING ART.6522

Code: CL65223M3
€4.10
VAT excluded: €3.36
Size : M3-HOSE 3
In stock 164 pieces in stock Ships in 24/48 hours

Description

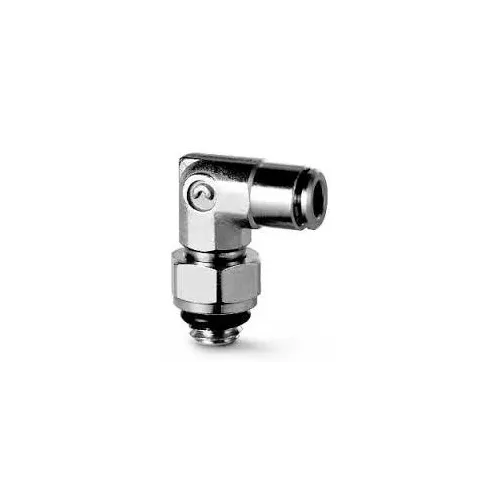

Swivel Male Elbow Fitting Camozzi Series 6000 - Item No. 6522


Camozzi 6522 swivel male elbow, part of the Series 6000 of super-rapid nickel-plated brass push-in fittings. The tube goes in by hand and a special clamp holds it, distributing the seal over the whole surface, with a long life even if it is inserted and released often, always without tools. It works with compressed air and PA, PU, PE or Hytrel tubes. The elbow rotates around the male thread and can be oriented after tightening. Variants 3-M3 micro with gasket, 4-M5, 6-M5, 6-1/8 and 8-1/8.

Technical Specifications

  • Type: Swivel male elbow, push-in
  • Variants: 3-M3, 4-M5, 6-M5, 6-1/8, 8-1/8
  • Thread: M3, M5 or G1/8
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6522
  • Brand: CAMOZZI

Applications and Uses

  • Mini cylinders and micro valves
  • Automatic machines, test benches and pneumatic panels
  • Compact pneumatic circuits

More details

Brand
CAMOZZI
Code
CL65223M3
Manufacturer code
6522 3-M3
