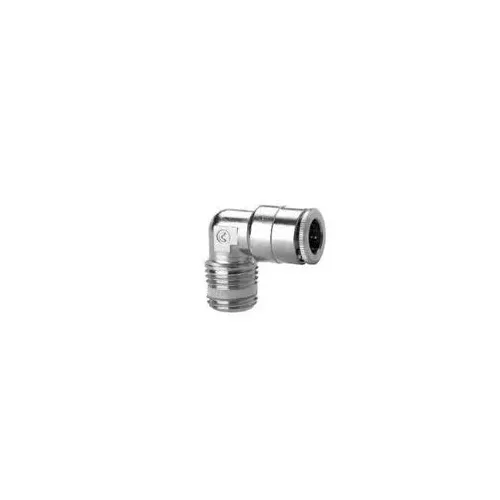

CAMOZZI FITTING ART.6500

Code: CL65001014
€2.90
VAT excluded: €2.38
Size : 1/4"-T.10
In stock 36 pieces in stock Ships in 24/48 hours

Description

Fixed Male Elbow Push-In Fitting Camozzi - Item No. S6500


Camozzi S6500 fixed male elbow, from the super-rapid Series 6000 range, with body and clamp in nickel-plated brass and NBR O-ring. Just push the tube into the connection: the clamp locks it with an even grip that stays reliable even after many connections, and no tools are needed to connect or release it. It accepts polyamide, polyurethane, polyethylene and Hytrel polyester tubes. It connects the tube at 90° to a threaded hole with a fixed, non-swivelling elbow and a tapered male R thread. Tube from 4 to 12 mm and threads R1/8, R1/4 or R3/8.

Technical Specifications

  • Type: Fixed male elbow, push-in
  • Thread: Tapered R1/8, R1/4, R3/8
  • Tube: from 4 to 12 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: S6500
  • Brand: CAMOZZI

Applications and Uses

  • 90° outlets on valves and cylinders
  • Automatic machines, test benches and pneumatic panels
  • Circuits with polyamide or polyurethane tube

More details

Brand
CAMOZZI
Code
CL65001014
Manufacturer code
S6500 10-1/4

Attachments
