CAMOZZI FITTING ART.6520

Code: CL65201014
€3.60
VAT excluded: €2.95
Size : 1/4"-T.10
In stock 30 pieces in stock Ships in 24/48 hours

Description

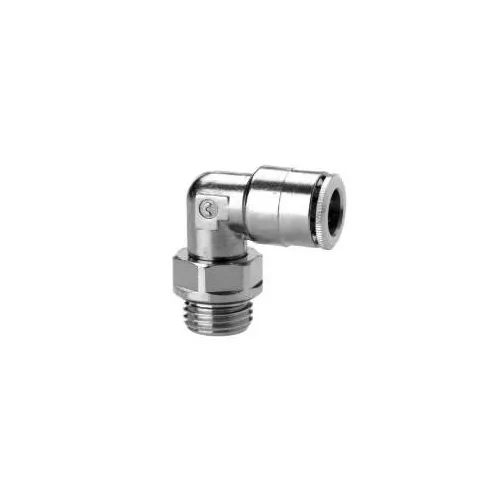

Sprint Swivel Male Elbow Fitting Camozzi - Item No. S6520


Camozzi S6520 Sprint swivel male elbow, from the super-rapid Series 6000 range, with body and clamp in nickel-plated brass and NBR O-ring. Just push the tube into the connection: the clamp locks it with an even grip that stays reliable even after many connections, and no tools are needed to connect or release it. It accepts polyamide, polyurethane, polyethylene and Hytrel polyester tubes. The elbow rotates around the parallel G male thread, with a Sprint PTFE ring, and can be oriented after tightening. Tube from 4 to 14 mm, thread from 1/8 to 1/2.

Technical Specifications

  • Type: Swivel male elbow, push-in
  • Thread seal: Sprint PTFE ring
  • Thread: G parallel from 1/8 to 1/2
  • Tube: from 4 to 14 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Item No.: S6520
  • Brand: CAMOZZI

Applications and Uses

  • Swivel outlets on valves and cylinders
  • Automatic machines, test benches and pneumatic panels
  • Circuits with little space around the ports

More details

Brand
CAMOZZI
Code
CL65201014
Manufacturer code
S6520 10-1/4
