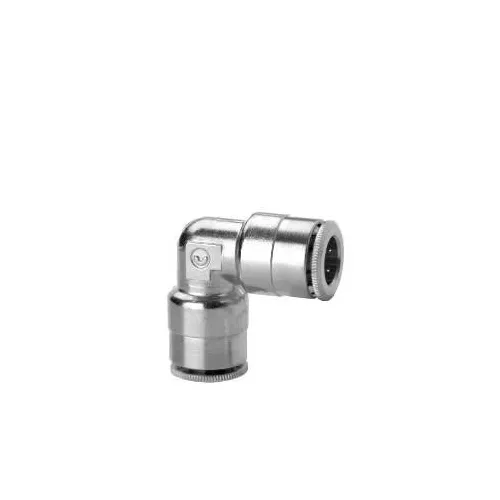

CAMOZZI FITTING ART.6550

General features of the Series

Body and collet materials OT58 nickel-plated, O - Ring NBR thread seals PTFE/NBR/PA

Threads BSP taper ISO 7 (BSPT) BSP parallel ISO 228 (BSP) M5-M6 and other metric threads on request NPT on request

Pressure min -0,8 - max 16 bar (see tubes)

Connecting tube Rilsan , polyamide 6 - 11 -12, polyethylene, PU

Diameters from ø 4 ÷ 16 mm

Fluid compressed air (for other types of fluids consult our technicians)

Temperature - 20°C ÷ 60°C (see characteristics of the tubes used)
