CAMOZZI FITTING ART.6540

Code: CL654010
€4.90
VAT excluded: €4.02
Size : HOSE 10
In stock 21 pieces in stock Ships in 24/48 hours

Description

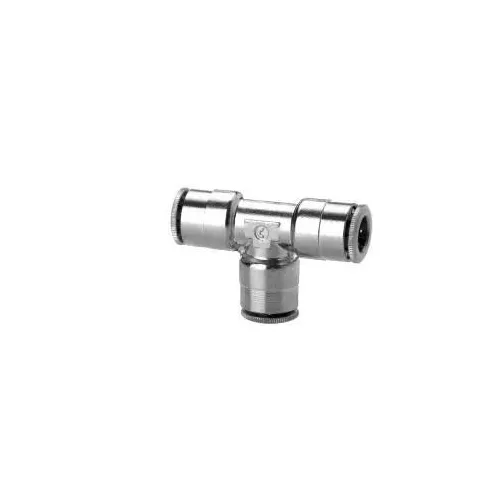

Union Tee Push-In Fitting Camozzi Series 6000 - Item No. 6540


Camozzi 6540 union tee, from the Series 6000 of super-rapid nickel-plated brass fittings for plastic tubes. The tube is pushed in by hand as far as it goes and a special clamp holds it with an even seal over the whole surface, reliable even after many insertions; the tube is connected and disconnected without tools. It is used with polyamide, polyurethane, polyethylene or Hytrel polyester tubes, with compressed air. It has three push-in connections arranged in a T and is used to branch a line directly on the tube, without threads. Tube from 3 mm, micro version, to 14 mm.

Technical Specifications

  • Type: Union tee, push-in (tube-tube-tube)
  • Tube: from 3 to 14 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6540
  • Brand: CAMOZZI

Applications and Uses

  • Branches on plastic tube lines
  • Automatic machines, test benches and pneumatic panels
  • Compressed air systems and lines in workshops and industry

More details

Brand
CAMOZZI
Code
CL654010
Manufacturer code
6540 10
