CAMOZZI FITTING ART.6463

Code: CL64631014
€2.30
VAT excluded: €1.89
Size : 1/4"-T.10
In stock 13 pieces in stock Ships in 24/48 hours

Description

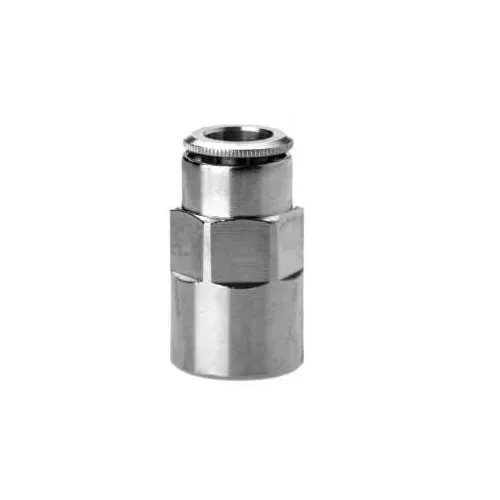

Straight Female Push-In Fitting Camozzi Series 6000 - Item No. 6463


Camozzi 6463 straight female fitting, belonging to the Series 6000 of super-rapid nickel-plated brass fittings. The internal clamp grips the tube evenly over the whole surface and keeps the seal even after repeated insertions and releases, which are done by hand, without tools. It is designed for compressed air with PA, PU, PE and Hytrel polyester tubes. One side has the connection for the tube, the other a parallel threaded female where nipples, silencers or components with a male port can be screwed. Variants for 6, 8 or 10 mm tube with G1/8 or G1/4.

Technical Specifications

  • Type: Straight female push-in
  • Thread: Female G1/8 or G1/4
  • Tube: 6, 8 or 10 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6463
  • Brand: CAMOZZI

Applications and Uses

  • Connecting tubes to components with a male port
  • Automatic machines, test benches and pneumatic panels
  • Maintenance and repair of pneumatic circuits

More details

Brand
CAMOZZI
Code
CL64631014
Manufacturer code
6463 10-1/4
