CAMOZZI FITTING ART.6600

Code: CL660010
€7.10
VAT excluded: €5.82
Size : HOSE 10
In stock 10 pieces in stock Ships in 24/48 hours

Description

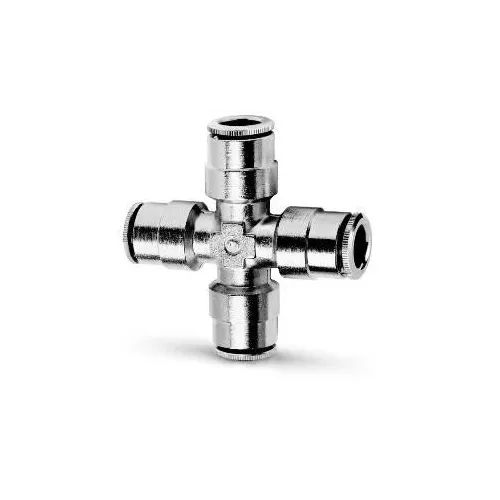

Intermediate Cross Push-In Fitting Camozzi Series 6000 - Item No. 6600


Camozzi 6600 intermediate cross, from the super-rapid Series 6000 range, with body and clamp in nickel-plated brass and NBR O-ring. Just push the tube into the connection: the clamp locks it with an even grip that stays reliable even after many connections, and no tools are needed to connect or release it. It accepts polyamide, polyurethane, polyethylene and Hytrel polyester tubes. It has four connections in a cross: it receives the air from one tube and distributes it to three users without manifolds. Tube from 4 to 12 mm.

Technical Specifications

  • Type: Intermediate cross, push-in (4-way)
  • Tube: from 4 to 12 mm, among the variants
  • Materials: Body and clamp in nickel-plated brass, NBR O-ring
  • Operating pressure: -0.9 to 16 bar
  • Temperature: -20 to 80 °C
  • Compatible tubes: PA, PU, PE, Hytrel polyester
  • Item No.: 6600
  • Brand: CAMOZZI

Applications and Uses

  • Air distribution to several users
  • Automatic machines, test benches and pneumatic panels
  • Control and service circuits

More details

Brand
CAMOZZI
Code
CL660010
Manufacturer code
6600 10
