SPROCKET 1/2" TRIPLEX

Code: ITP12Z10T
€7.90
VAT excluded: €6.48
Size : Z 10
In stock 2 pieces in stock Ships in 24/48 hours

Description

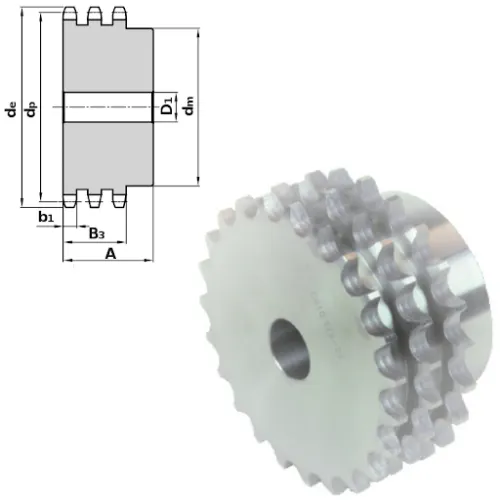

Triple Pinion for Roller Chain, 1/2 Inch Pitch - Item No. ITP12T00


A three-row toothed wheel for triple chains: this SIT pinion, with a pitch of 1/2 inch, spreads the load over three rows of rollers. The toothing is for roller chains to DIN 8187 - ISO/R 606; the SIT series corresponding to the 1/2 inch pitch is 08B-3 (1/2 x 5/16 inch). The chain of the 08B series has an inner width of 7.75 mm and a roller 8.51 mm in diameter for each row. The number of teeth is chosen among the variants, from 9 to 28. For a long service life SIT recommends a centre distance of between 30 and 50 times the pitch of the chain, with a sag of no more than 2 per cent of the centre distance. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.

Technical Specifications

  • Type: Triple pinion for roller chain
  • Chain pitch: 1/2 inch (12.7 mm)
  • SIT ISO series: 08B-3 (1/2 x 5/16 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 7.75 mm
  • Rows of teeth: 3
  • Number of teeth: from 9 to 28, selectable among the variants
  • Material: quality carbon steel
  • Item No.: ITP12T00
  • Brand: SIT

Applications and Uses

  • Heavily loaded conveyors and production lines
  • Triple-chain drives for high loads
  • Industrial power drives with several rows of rollers

More details

Brand
SIT
Code
ITP12Z10T
