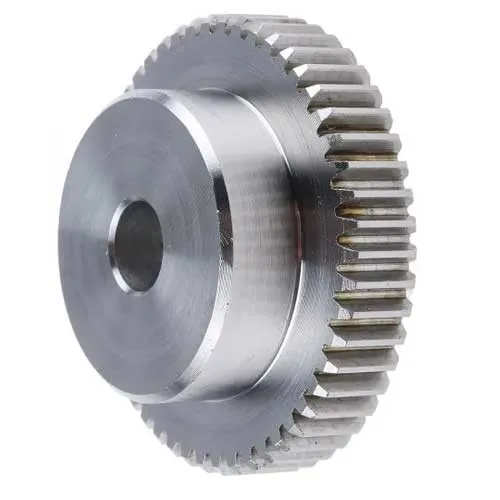

MODULE PINION, PITCH 3

Code: ITPM3Z13
€8.10
VAT excluded: €6.64
Size : Z 13
In stock 2 pieces in stock Ships in 24/48 hours

Description

Module 3 Pinion - Item No. ITPM300


The module 3 pinion is a cylindrical toothed wheel designed to mesh with gear rings or racks of the same module; the number of teeth is chosen among the variants. The module is the parameter that defines the size of the tooth: two wheels mesh correctly only if they have the same module. The material, tooth width, bore and treatment are not specified for this item: they must be requested from the supplier before purchase, especially if the wheel has to work under load.

Technical Specifications

  • Type: cylindrical toothed wheel, pinion with module toothing
  • Module: 3
  • Number of teeth: selectable among the variants
  • Toothing: for meshing with wheels of the same module
  • Material: to be confirmed
  • Item No.: ITPM300
  • Brand: SIT

Applications and Uses

  • Toothed gear drives with wheels of the same module
  • Coupling with racks for linear movements
  • Spare parts for existing machines and automatic systems

More details

Brand
SIT
Code
ITPM3Z13

Recommended accessories and spare parts

WELD-ON MOUNT FOR RACK

€0.85
Only 2 left!
Availability: 2 In stock

Weld-on steel attachment for racks, item no. 473/A: it creates the fixing point for a rack on a metal structure, for use in lifting and traversing systems.

MOUNT FOR SCREW RACK

€1.30
AVAILABLE
Availability: 21 In stock

Screw-on rack bracket, item no. 263: a fixing element screwed to the metal structure to mount the rack, typical of sliding gate automation. A spare part for installers.

Reviews (0)
No customer reviews for the moment.

16 other products in the same category:

PLATE WHEEL SPROCKET 1" SIMPLEX

€8.90
AVAILABLE
Availability: 3 In stock

SIT 1" single sprocket, a toothed wheel with one row of teeth for single roller chain to ISO/R 606. Pitch 25.4 mm, from 11 to 75 teeth: the choice is made among the variants.

SPROCKET 3/8" TRIPLEX

€6.30
Only 2 left!
Availability: 2 In stock

For roller chain with a 3/8 inch pitch (9.525 mm): SIT triple pinion of the ISO series 06B-3, DIN 8187 and ISO/R 606, with the number of teeth to be chosen among the variants. Item No. ITP38T00.

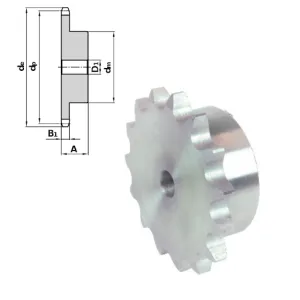

SPROCKET 5/8" SIMPLEX
