PLATE WHEEL SPROCKET 1/2" DUPLEX

Code: ITC12Z110D
€309.30
VAT excluded: €253.52
Size : Z 110
In stock 1 piece in stock Ships in 24/48 hours

Description

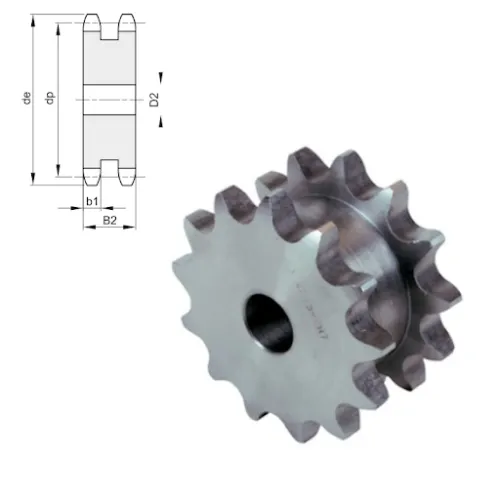

1/2" Double Sprocket


A toothed wheel with two rows of teeth, for roller chains with a pitch of 1/2": this is how the 1/2" double sprocket of the SIT catalogue is described. The tooth is slightly thinner than the inner width of the chain, between 90 and 93 per cent.

The 1/2" pitch corresponds to 12.7 mm; for the ISO series the catalogue gives ISO series 08B-2 (1/2" x 5/16"). The number of teeth is chosen among the variants (from 13 to 110 teeth). Chain and sprocket should always be checked together before assembly.

Technical Specifications

  • Version: double (two rows of teeth)
  • Pitch: 1/2", equal to 12.7 mm
  • ISO series reference: ISO series 08B-2 (1/2" x 5/16")
  • Standards: ISO/R 606 and DIN 8187
  • Number of teeth: from 13 to 110 teeth
  • Item No.: ITC12D00
  • Brand: SIT

Applications and Uses

  • Belts and conveyors
  • Industrial chain drives
  • Agricultural machinery
