PLATE WHEEL SPROCKET 1.1/2" SIMPLEX

Code: ITC112Z11S
€27.90
VAT excluded: €22.87
Size : Z 11
In stock 2 pieces in stock Ships in 24/48 hours

Description

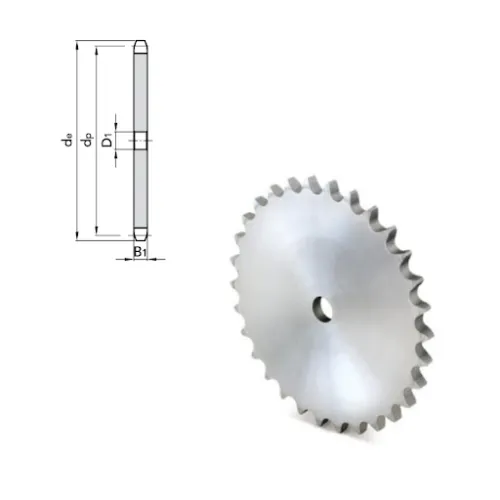

1 1/2" Single Sprocket


The 1 1/2" single sprocket is a toothed wheel for roller chains to DIN 8187 and ISO/R 606, with a pitch of 1 1/2" (38.1 mm). The SIT catalogue places it among the ES Elitesystem sprockets of the ISO series, in the version with one row of teeth.

The tooth thickness is sized on the inner width of the chain, between 90 and 93 per cent. The number of teeth is chosen among the variants (from 9 to 45 teeth). Chain and sprocket should always be checked together before assembly.

Technical Specifications

  • Type: Sprocket for roller chain, single version
  • Pitch: 1 1/2" (38.1 mm)
  • Rows of teeth: 1
  • Standards: DIN 8187, ISO/R 606
  • Series reference: ISO series 24B-1 (1 1/2" x 1")
  • Number of teeth: from 9 to 45 teeth
  • Item No.: ITC112S00
  • Brand: SIT

Applications and Uses

  • Industrial chain drives
  • Reduction gears and gearmotors
  • Agricultural machinery

More details

Brand
SIT
Code
ITC112Z11S
