SPROCKET 1.3/4" SIMPLEX

Code: ITP134Z21S
€205.30
VAT excluded: €168.28
Size : Z 21
In stock 1 piece in stock Ships in 24/48 hours

Description

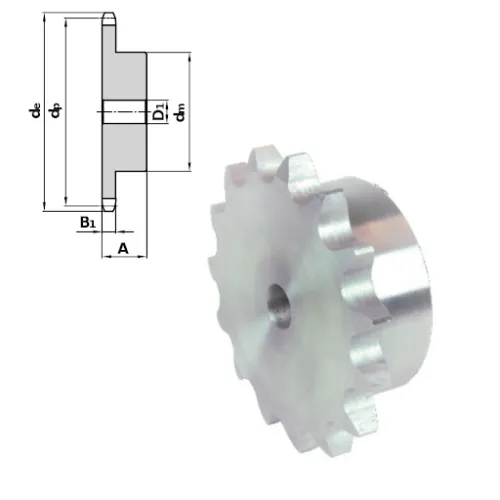

Single Pinion for Roller Chain, 1 3/4 Inch Pitch - Item No. ITP134S00


SIT pinion with a single row of teeth, 1 3/4 inch pitch, for drives with a single roller chain. The material is quality carbon steel (stamped or with welded hub); the SIT catalogue also includes pinions with hardened teeth and in stainless steel. Reference standards: DIN 8187 and ISO/R 606. For the 1 3/4 inch pitch the manufacturer's ISO range provides chain 28B-1, 1 3/4 x 1 1/4 inch. The chain of the 28B series has an inner width of 30.99 mm and a roller 27.94 mm in diameter; the tooth width is 29.4 mm. The number of teeth is chosen among the variants, 21. For a long service life SIT recommends a centre distance of between 30 and 50 times the pitch of the chain, with a sag of no more than 2 per cent of the centre distance.

Technical Specifications

  • Type: Single pinion for roller chain
  • Chain pitch: 1 3/4 inches (44.45 mm)
  • SIT ISO series: 28B-1 (1 3/4 x 1 1/4 inch)
  • Standard: DIN 8187 - ISO/R 606
  • Chain inner width: 30.99 mm
  • Tooth width: 29.4 mm
  • Rows of teeth: 1
  • Number of teeth: 21
  • Material: quality carbon steel
  • Item No.: ITP134S00
  • Brand: SIT

Applications and Uses

  • Chain drives of machine tools and production lines
  • Conveyor belts and light handling
  • Agricultural machinery and processing plants
