CHAIN UNI PITCH SIMPLEX

Code: CT1603
€8.50
VAT excluded: €6.97
Size : 1/2"
In stock 14 pieces in stock Ships in 24/48 hours

Description

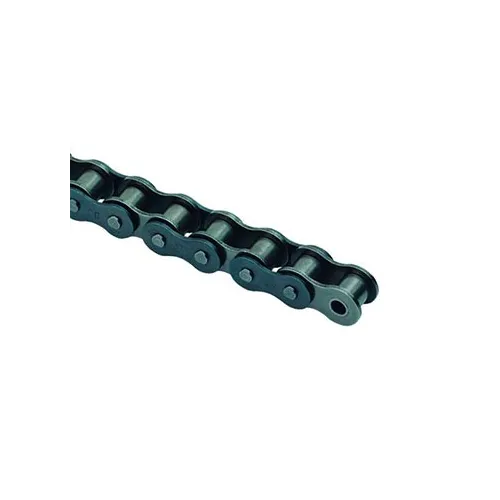

Roller Chain UNI Pitch Single - Item No. 06B1


Chain drive with a single row of rollers: the chain wraps around sprockets with matching teeth and connects shafts that are far apart. The reference is the ISO 606 (DIN 8187) standard, B series, now codified in Italy as UNI ISO 606.

The pitches are chosen among the variants. Remember to match sprockets and chain with the same pitch and to provide a connecting link for closing the chain. In this way the drive runs smoothly and the chain wears evenly on the sprocket teeth.

Technical Specifications

  • Type: Roller chain
  • Reference standard: UNI ISO 606 (DIN 8187)
  • Rows of rollers: single
  • Pitch: selectable among the variants
  • Closure: by connecting link
  • Item No.: 06B1
  • Brand: not specified

Applications and Uses

  • Agricultural and industrial machinery
  • Lifting and handling
  • Spare parts for chain drives

More details

Code
CT1603
Manufacturer code
08B1

Attachments

Recommended accessories and spare parts

CONNECTING LINK UNI PITCH SIMPLEX

€0.60
COMING SOON
Availability: Out of stock

Connecting link for UNI-pitch roller chains with a single row of rollers: it closes the chain into a loop and makes it continuous. The correct pitch is chosen among the variants, according to the chain fitted.

OFFSET LINK 1 ROLLER UNI PITCH SIMPLEX

€1.20
AVAILABLE
Availability: 73 In stock

Single-roller offset link for UNI-pitch chains with a single row of rollers: used to adjust and close the length. The available pitches are chosen among the variants.

SPROCKET 3/8" SIMPLEX

€1.90
Last one left!
Availability: 1 In stock

SIT single pinion with a single row of teeth for roller chain, 3/8 inch pitch (9.525 mm), standard DIN 8187 - ISO/R 606, series 06B-1. Sizes selectable among the variants. Item No. ITP38S00.

SPROCKET 1" SIMPLEX

€15.00
Last one left!
Availability: 1 In stock

SIT single pinion for roller chain, 1 inch pitch (25.4 mm), ISO series 16B-1 to DIN 8187 and ISO/R 606. Number of teeth selectable among the variants. Item No. ITP1S00.
