PLATE WHEEL SPROCKET 1/2" TRIPLEX

Code: ITC12Z38T
€46.60
VAT excluded: €38.20
Size : Z 38
In stock 1 piece in stock Ships in 24/48 hours

Description

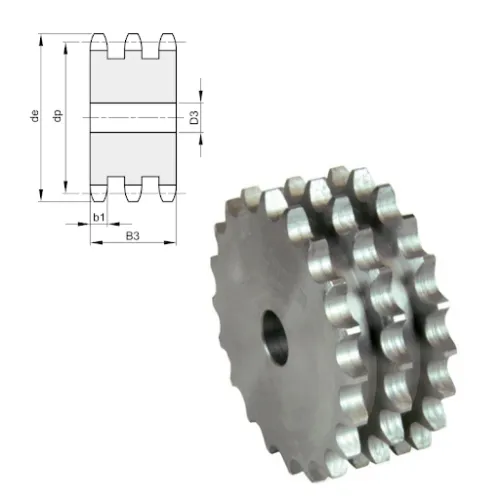

1/2" Triple Sprocket


Pitch 1/2", three rows of teeth: the 1/2" triple sprocket is used to transmit motion with a triple roller chain of the same pitch. The chain and the wheel must have the same pitch and a matching number of rows.

For a long-lasting drive, SIT recommends a centre distance of between 30 and 50 times the pitch of the chain, with a sag of no more than 2 per cent of the centre distance. It is available with 38 teeth. Chain and sprocket should always be checked together before assembly.

Technical Specifications

  • Type: Triple sprocket for roller chain
  • Pitch: 12.7 mm
  • Matching chain: roller chain, 1/2 inch pitch
  • Reference standards: ISO/R 606, DIN 8187
  • Number of rows: 3
  • Number of teeth: 38 teeth
  • Item No.: ITC12T00
  • Brand: SIT

Applications and Uses

  • Chain drives
  • Belts and conveyors
  • Industrial machinery

More details

Brand
SIT
Code
ITC12Z38T
