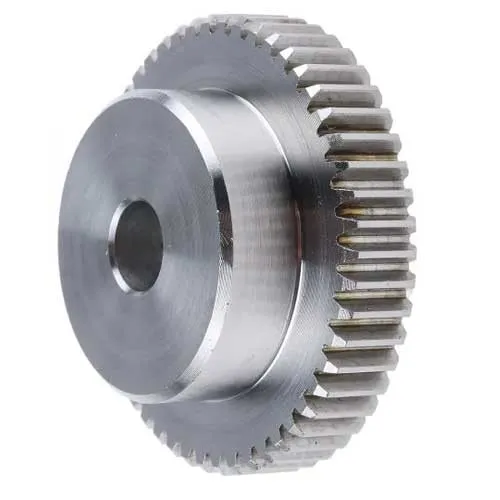

SIT module 1 gear ring with 75 teeth, toothing for direct meshing with pinions and racks of the same module. Item No. ITCM100, brand SIT. Single version of the wheel, with no size variants to choose.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description
Module 1 Gear Ring - Item No. ITCM100
SIT gear ring with module 1 toothing and 75 teeth: unlike wheels for chain, it couples by direct meshing with a pinion of the same module. The module is the parameter that defines the size of the tooth: two wheels mesh correctly only if they have the same module. The material, tooth width, bore and treatment are not specified for this item: they must be requested from the supplier before purchase, especially if the wheel has to work under load.
Technical Specifications
- Type: cylindrical toothed wheel, gear ring with module toothing
- Module: 1
- Number of teeth: 75
- Toothing: for meshing with wheels of the same module
- Material: to be confirmed
- Item No.: ITCM100
- Brand: SIT
Applications and Uses
- Toothed gear drives with wheels of the same module
- Coupling with racks for linear movements
- Spare parts for existing machines and automatic systems
More details
- Brand
- SIT
- Code
- ITCM1Z75
