SIT double sprocket with two rows of teeth for roller chain, 5/8 inch pitch (15.875 mm), standard DIN 8187 - ISO/R 606, series 10B-2. Sizes selectable among the variants. Item No. ITC58D00.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

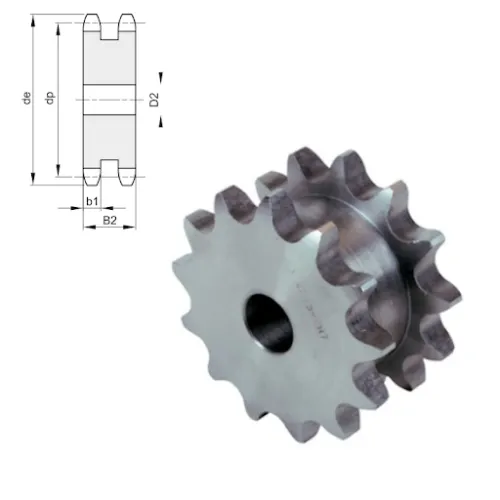

Double Sprocket for Roller Chain, 5/8 Inch Pitch - Item No. ITC58D00
With two rows of teeth and a pitch of 5/8 inch, the SIT double sprocket is matched with the double roller chain of the same pitch. Reference standards: DIN 8187 and ISO/R 606. For the 5/8 inch pitch the manufacturer's ISO range provides chain 10B-2, 5/8 x 3/8 inch. The pitch is 15.875 mm; the chain has an inner width of 9.65 mm and a roller of 10.16 mm. The manufacturer's range includes pinions and sprockets for British Standard chain up to two inches of pitch; for special requirements, supply to order is available. The range goes from 14 to 53 teeth and is selected among the variants. The pitch and inner width of the chain in use should be compared with the data in this sheet before choosing the number of teeth.
Technical Specifications
- Type: Double sprocket for roller chain
- Chain pitch: 5/8 inch (15.875 mm)
- SIT ISO series: 10B-2 (5/8 x 3/8 inch)
- Standard: DIN 8187 - ISO/R 606
- Chain inner width: 9.65 mm
- Rows of teeth: 2
- Number of teeth: from 14 to 53, selectable among the variants
- Item No.: ITC58D00
- Brand: SIT
Applications and Uses
- Processing machines and plants with high torque
- Replacement of pinions and sprockets on two-row roller chains
- Industrial drives with double chain transmission
More details
- Brand
- SIT
- Code
- ITC58Z14D
Recommended accessories and spare parts
