STM U 63 GEARBOX FOR MOTOR, BORE 25

Code: MEU6310
€204.30
VAT excluded: €167.46
Size : 1∶10
In stock 2 pieces in stock Ships in 24/48 hours

Description

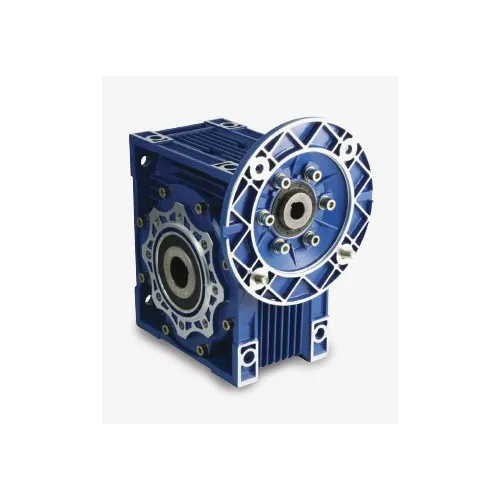

STM U 63 Worm Gearbox for Motor, Ø 25 mm Bore - Item No. 2180210421


STM U series worm gearbox, size 63, for coupling to a motor, with a 25 mm output bore. The series has a cubic shape, which gives great freedom of mounting and simplifies stock management, and a casing designed to dissipate heat and make cleaning easy. The ratios, from 1:7 to 1:100 for the series, are chosen among the variants. Item No. 2180210421.

Technical Specifications

  • Type: Square worm gearbox
  • Series: STM U
  • Size: 63
  • Output bore: Ø 25 mm
  • Ratios: selectable among the variants (series from 1:7 to 1:100)
  • IEC motors in the catalogue: 71, 80 and 90
  • Item No.: 2180210421
  • Brand: STM

Applications and Uses

  • Gearmotors for conveyors and light material handling
  • Packaging machines and processing lines
  • Drives where freedom of mounting position is needed

More details

Brand
STM
Code
MEU6310
Manufacturer code
2180231716

Attachments

Recommended accessories and spare parts

HALF-COUPLING FOR U63 GEARBOX 24

€12.00
Only 2 left!
Availability: 2 In stock

STM half coupling for U 63 worm gearbox, 24 mm bore, item no. 2450900341. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.

HALF-COUPLING UMI63 NEW TYPE BORE 24

€14.10
AVAILABLE
Availability: 5 In stock

STM spare part item no. 2450901416: new-type half coupling with 24 mm bore for U 63 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.

MOTOR FLANGE FOR U63 GEARBOX PAM90 B14

€22.00
Last one left!
Availability: 1 In stock

STM motor flange for U 63 gearbox, PAM 90 B14 configuration, item no. 2450010606. It matches the IEC 90 motor to the gearbox: catalogue motor shaft 24 mm and flange 140 mm.

HALF-COUPLING UMI63 NEW TYPE BORE 19

€25.40
AVAILABLE
Availability: 10 In stock

STM new-type half coupling, 19 mm bore, for U 63 gearbox, item no. 2450901406: in quenched and tempered steel, part of the STM motor-gearbox coupling without fretting and with reduced overall dimensions.

HALF-COUPLING UMI63 NEW TYPE BORE 14

€25.40
AVAILABLE
Availability: 6 In stock

STM spare part item no. 2450901396: new-type half coupling with 14 mm bore for U 63 worm gearboxes, in quenched and tempered steel, for the coupling to the motor.

MOTOR FLANGE FOR U63 GEARBOX PAM80 B14

€25.90
Last one left!
Availability: 1 In stock

STM motor flange for U 63 gearbox, PAM 80 B14 configuration, item no. 2450010586. It matches the IEC 80 motor to the gearbox: catalogue motor shaft 19 mm and flange 120 mm.

SINGLE-PHASE MOTOR 220V 2800 RPM B3

€80.60
Last one left!
Availability: 1 In stock

Single-phase 220 V electric motor, 2800 rpm, in B3 mounting form with fixing feet. Power ratings and frame sizes selectable among the variants, from 0.25 HP size 63 up to 3 HP size 90.
