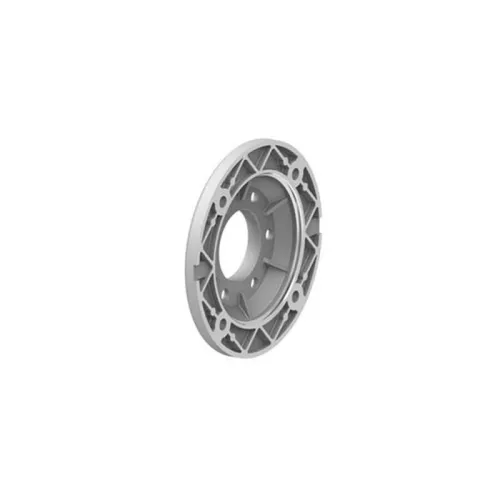

MOTOR FLANGE FOR U63 GEARBOX PAM90 B14

Code: MEU63PAM90B14
€22.00
VAT excluded: €18.03
In stock 1 piece in stock Ships in 24/48 hours

Description

Motor Flange for STM U 63 Gearbox PAM 90 B14 - Item No. 2450010606


STM motor flange for the U 63 worm gearbox, in the PAM 90 configuration with B14 fitting. It is the part that connects the motor to the gearbox: for this size the STM catalogue gives, with the IEC 90 motor, the combination of 24 mm motor shaft and 140 mm flange (B14). The standard configuration of the connection flange has four holes at 45 degrees to the axes. Item No. 2450010606.

Technical Specifications

  • Type: Motor flange
  • Gearbox: STM U series, size 63
  • Motor interface: PAM 90
  • Fixing form: B14
  • Catalogue motor shaft: 24 mm
  • Catalogue motor flange: 140 mm
  • Item No.: 2450010606
  • Brand: STM

Applications and Uses

  • Fitting an IEC 90 motor to the STM U 63 gearbox
  • Replacement of a damaged or out-of-tolerance flange
  • Spare parts for maintenance of worm gearmotors

More details

Brand
STM
Code
MEU63PAM90B14
Manufacturer code
2450010606
