Tellure Rota series 61 wheel, non-staining thermoplastic polyurethane 85 Shore A (wheel with through-hole stainless steel bracket), item no. 617903. Hole spacing 73 mm, hole 12 mm, 180 daN at diameter 125. Bracket type to be confirmed.
Polyurethane Wheel Tellure Rota Series 61 with Drilled Stainless Steel Bracket - Item No. 617903

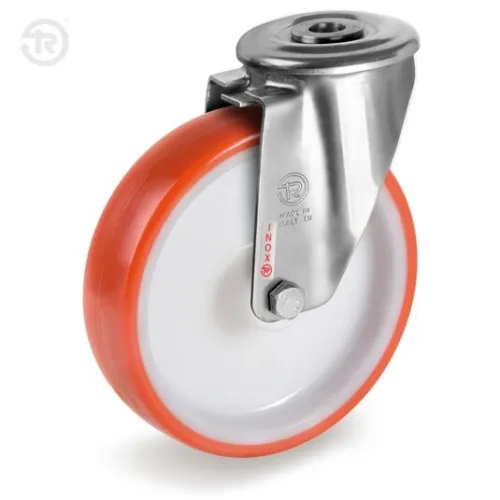

Tellure Rota series 61 wheel, with non-staining 85 Shore A thermoplastic polyurethane covering and polyamide 6 core, on an AISI 304 stainless steel bracket. Version with through-hole stainless steel bracket, hole spacing 73 mm and 12 mm hole; the bracket type (fixed, swivel or with brake) is to be confirmed. In the 125 mm diameter the load capacity is 180 daN at 4 km/h. Choose the diameter from the available variants. The manufacturer describes it as ideal for indoor use and suitable for frequent washing and sterilisation; the stainless steel bracket has a maximum load capacity of 300 daN. For the range, the manufacturer declares design to ISO 22880 and UNI EN 12529 and compliance with the RoHS and REACH directives.
Technical Specifications
Type: Wheel with through-hole stainless steel bracket
Covering: Non-staining thermoplastic polyurethane 85 Shore A
Core: Polyamide 6
Diameters: 80, 100 and 125 mm
Bracket: to be confirmed (fixed, swivel or with brake)
Tellure Rota series 61 wheel, non-marking thermoplastic polyurethane 85 Shore A (wheel with through-hole stainless steel bracket and brake), item no. 618803. Through-hole stainless steel bracket with brake, centre distance 73 mm, hole 12 mm, 180 daN in diameter 125. Fixed or swivel to be confirmed.
Polymer twin wheel with pin in diameters of 35 and 45 mm. Rolls smoothly on smooth surfaces, for furniture and light trolleys. If in doubt about the right size, write to us.
35 mm chrome-plated wheel with expanding rubber fitting, model MDA. It fits into the tube of furniture, trolleys and light equipment. Check the fitting and load capacity before ordering.
35 mm chrome-plated wheel with knurled fitting, model MDL. It is fixed by press-fitting into the structure of furniture, trolleys and light equipment. If in doubt about the right size, write to us.
