Tellure Rota stainless steel backing plate in two sizes, 100x85 and 140x110 mm, for wheel plate brackets. It strengthens the fixing of the bracket to the structure, item no. 110106.
Tellure Rota series 61 wheel, non-marking thermoplastic polyurethane 85 Shore A (wheel with through-hole stainless steel bracket and brake), item no. 618803. Through-hole stainless steel bracket with brake, centre distance 73 mm, hole 12 mm, 180 daN in diameter 125. Fixed or swivel to be confirmed.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

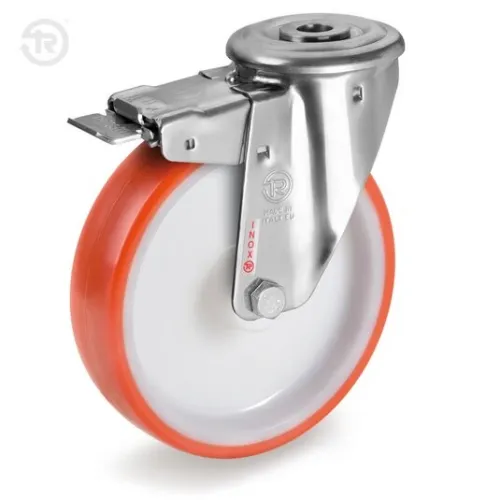

Tellure Rota Series 61 Polyurethane Wheel with Drilled Stainless Steel Bracket and Brake - Item No. 618803
Tellure Rota series 61 wheel: non-marking thermoplastic polyurethane of 85 Shore A, polyamide 6 core and AISI 304 stainless steel bracket with stainless steel balls. Version with through-hole stainless steel bracket and brake, to lock the wheel when needed, with centre distance 73 mm and 12 mm hole; whether the bracket is fixed or swivel is to be confirmed. In the 125 mm diameter the load capacity is 180 daN at 4 km/h. The dimensions are selectable from the variants. The manufacturer describes it as ideal for indoor use and suitable for frequent washing and sterilisation; the stainless steel bracket has a maximum load capacity of 300 daN.
Technical Specifications
- Type: Wheel with through-hole stainless steel bracket and brake
- Covering: Non-marking thermoplastic polyurethane 85 Shore A
- Core: Polyamide 6
- Diameters: 80, 100 and 125 mm
- Bracket: Stainless steel with brake; fixed or swivel to be confirmed
- Fixing holes: centre distance 73 mm, hole 12 mm
- Operating temperature: from -15 to +70 °C
- Item No.: 618803
- Brand: TELLURE ROTA
Applications and Uses
- Kitchens, laboratories and the food industry
- Equipment subject to frequent washing
- Indoor use on smooth floors
More details
- Brand
- TELLURE ROTA
- Code
- RU618801
- EAN13
- 8007554046166
- Manufacturer code
- 618801
