BOSCH GOL 26D OPTICAL LEVEL + GR500 STAFF+BT 160 TRIPOD

Code: UEBGOL26D
€336.80
VAT excluded: €276.07
In stock 1 piece in stock Ships in 24/48 hours

Description

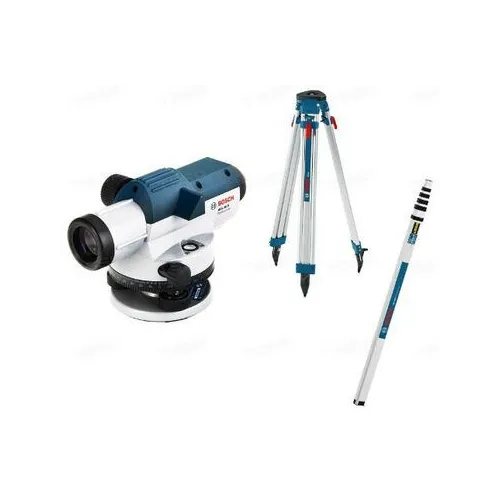

Bosch GOL 26 D Professional optical level with BT 160 tripod and GR 500 staff - Item No. 0601068002


Bosch GOL 26 D Professional optical level, item no. 0601068002, in a set with BT 160 tripod and GR 500 staff: everything needed to take heights and level differences on site. The 26x telescope gives a levelling accuracy of ±1.6 mm over 30 m and a range of 100 m, while the 360° graduation also allows angles to be transferred. The metal body, IP54 protected against dust and splashes, is made for working outdoors; the sighting device and integrated spirit level speed up setting up, and a lock secures the compensator during transport. It mounts on a tripod with a 5/8" thread and weighs about 1.5 kg. The set in a case also includes a plumb bob and an objective lens protector.

Technical Specifications

  • Type: Optical level with compensator
  • Magnification: 26x
  • Levelling accuracy: ±1.6 mm over 30 m
  • Range: 100 m
  • Graduation: 360°
  • Protection: IP54
  • Tripod thread: 5/8"
  • Operating temperature: -10 to +50 °C
  • Weight: about 1.5 kg
  • Supplied with: BT 160 tripod, GR 500 staff, plumb bob, case
  • Item No.: 0601068002
  • Brand: BOSCH

Applications and Uses

  • Surveying heights and level differences on site
  • Levelling outdoors, even with dust and splashes
  • Reading heights with the GR 500 staff
  • Transferring angles on the 360° circle
