BOSCH GIM 60 L ELECTRONIC LEVEL

Code: UEBDNM60L
€255.60
VAT excluded: €209.51
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

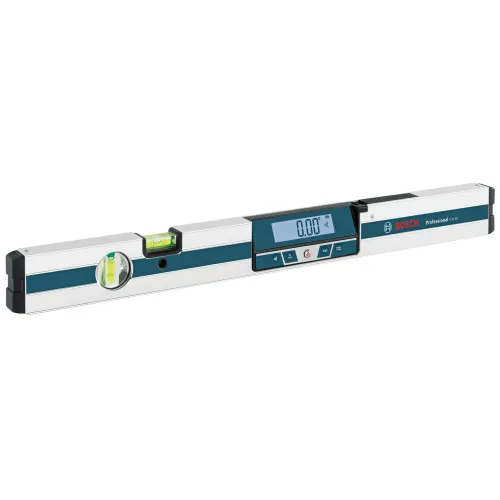

Bosch GIM 60 L Professional Digital Electronic Level with Laser - Item No. 0601076900


Bosch GIM 60 L Professional electronic level, item no. 0601076900, 60 cm long, which combines digital inclination measurement with a built-in point laser. The measuring range covers the full 360° (4 x 90°), with accuracy of ±0.05° at 0° and 90° and ±0.1° between 1° and 89°, and the value is read in degrees, as a percentage or in mm/m. The class 2 laser projects a point up to 30 m to carry the inclination over a distance, with levelling accuracy of ±0.5 mm/m. Powerful magnets and two support straps fix it to surfaces and objects, while the tilting mechanism allows fine adjustment even on uneven surfaces. It weighs about 0.91 kg and is supplied with batteries and a protective bag.

Technical Specifications

  • Type: Digital electronic level with point laser
  • Length: 60 cm
  • Measuring range: from 0° to 360° (4 x 90°)
  • Accuracy: ±0.05° at 0°/90°, ±0.1° from 1° to 89°
  • Units of measurement: degrees, percentage, mm/m
  • Laser: point, 650 nm, class 2, range 30 m, ±0.5 mm/m
  • Fixing: magnets and two support straps
  • Tripod mount: 1/4"
  • Weight: about 0.91 kg
  • Item No.: 0601076900
  • Brand: BOSCH

Applications and Uses

  • Measuring and adjusting inclinations and slopes
  • Transferring inclinations over a distance with the laser
  • Fixing to metal surfaces and objects with magnets and straps
  • Work on uneven surfaces with the fine adjustment
