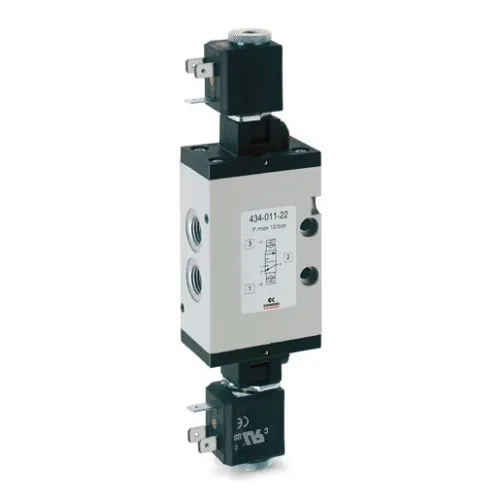

CAMOZZI SERIES 4 SOLENOID VALVE

Code: CL434011A70
€21.60
VAT excluded: €17.70
Size : 434-011-22
In stock 1 piece in stock Ships in 24/48 hours

Description

Solenoid Valves Camozzi Series 4


Camozzi solenoid valves of the Series 4, balanced spool distributors in 3/2, 5/2 and 5/3 functions, with solenoid and spring control, double solenoid or solenoid and pneumatic spring. Reference code 464-011-22 is a 5/3 closed centre valve with G1/4 ports, double solenoid, 1250 Nl/min and pressure from 2.5 to 10 bar. The G1/8 versions reach 650 Nl/min, the G1/4 versions 1250 Nl/min, the G1/2 versions 2500 Nl/min. Aluminium body and sub-bases, stainless steel spool, engineering polymer end caps, NBR and PU seals, bistable manual override, temperature from 0 to 60 °C. The valves are without coil: U7, G7, A8 or H8 solenoids are fitted.

Technical Specifications

  • Type: 3/2, 5/2, 5/3 balanced spool solenoid valves
  • Series: 4
  • Ports: G1/8, G1/4, G1/2 depending on model
  • Flow: up to 650 (G1/8), 1250 (G1/4), 2500 Nl/min (G1/2)
  • 464-011-22: 5/3 CC G1/4, double solenoid, 2.5 to 10 bar
  • Materials: Aluminium, stainless steel spool, NBR and PU
  • Temperature: 0 to 60 °C (from -20 °C with dry air)
  • Coils: Sold separately (U7, G7, A8, H8)
  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Control of double-acting cylinders
  • Valve banks on manifolds
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL434011A70
Manufacturer code
434-011-22

Attachments

Recommended accessories and spare parts

CAMOZZI COIL MOD. SERIES A.. U..

€10.08
AVAILABLE
Availability: 7 In stock

Camozzi Series U7 22x22 coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-B connection, IP65 with connector, continuous duty. Voltages from 12 V to 230 V among the variants.

CAMOZZI COIL SERIES A8

€14.92
AVAILABLE
Availability: 6 In stock

Camozzi Series A8 30x30 PPS coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-A connection, class H, IP65 with connector. A83 24 V DC, A8B 24 V AC, A8D 110 V AC, A8E 220 V AC.

CAMOZZI SILENCER ART. 2921

€4.48
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).
