CAMOZZI MECHANICAL CONTROL VALVE SERIES 3

Code: CL338945
€16.30
VAT excluded: €13.36
Size : 338-945
In stock 3 pieces in stock Ships in 24/48 hours

Description

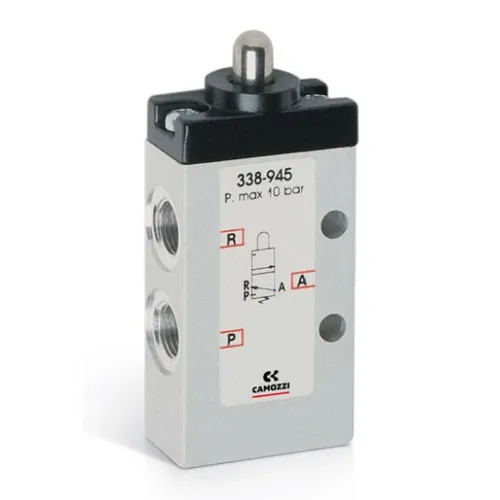

Mechanically Operated Valves Camozzi Series 3 G1/8


Camozzi mechanically operated valves of the Series 3 with G1/8 ports, built as spring-return spool valves: they are operated by the passage of a cam or a part and work as pneumatic limit switches and enabling signals. Reference code 338-945 is a front-actuated 3/2, force 32 N; the 3/2 valves are normally closed with pressure at 1 and open with pressure at 3. The variants include 3/2 and 5/2 valves with roller lever, which switches in both directions, and with one-way roller, which switches in one direction only. Flow 700 Nl/min, pressure from -0.9 to 10 bar. Aluminium body, stainless steel spool, NBR seals.

Technical Specifications

  • Type: 3/2 and 5/2 mechanically operated valves
  • Series: 3, spool
  • Ports: G1/8
  • Devices: Front plunger, roller lever, one-way roller
  • Flow: 700 Nl/min
  • 338-945: 3/2 with front plunger, 32 N
  • Operating pressure: -0.9 to 10 bar
  • Materials: Aluminium body, stainless steel spool, NBR seals
  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Pneumatic limit switches and enabling signals
  • Cylinder control from cams and moving parts
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL338945
Manufacturer code
338-945

Attachments

Recommended accessories and spare parts

CAMOZZI NIPPLE ART. 2501

€2.09
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI SILENCER ART. 2921

€4.48
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).

CAMOZZI FITTING ART.6512

€1.20
AVAILABLE
Availability: 6 In stock

Camozzi 6512 straight male fitting, Series 6000 super-rapid: connection for 4 mm tube and metric male thread M5 or M6 among the variants. Nickel-plated brass, up to 16 bar, weight 4-6 g.

CAMOZZI FITTING ART.6510

€2.48
AVAILABLE
Availability: 40 In stock

Camozzi S6510 Sprint straight male fitting, Series 6000 super-rapid: tube connection and G male thread with PTFE sealing ring. Tube from 4 to 14 mm and thread from 1/8 to 1/2 among the variants.
