CAMOZZI HINGE MOD L

Code: CLL100
€26.50
VAT excluded: €21.72
Size : LD 100
In stock 3 pieces in stock Ships in 24/48 hours

Description

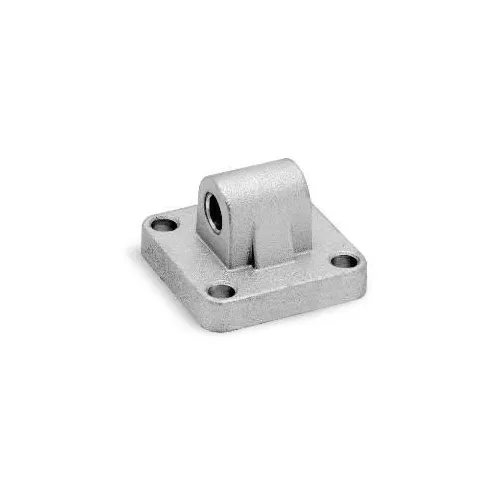

Rear Male Hinge Camozzi Mod. L for ISO 15552 Cylinders - Item No. L-41


Camozzi Mod. L rear male hinge, a mounting accessory for ISO 15552 cylinders of the Series 61 and 63, also listed for the Series 40, 41 and 60. It screws onto the rear end cap of the cylinder with the four screws supplied and forms the pin on which the cylinder swings during the stroke: it is paired with the Mod. C or C-H female hinge and the Mod. S pin, or with a machine support. It is made of aluminium. The dimensions follow the ISO 15552 standard, so it is interchangeable with other cylinders of the same size. Variants for bores 32, 40, 50, 63, 80 and 100 mm; for the 100 the pin is 20 mm.

Technical Specifications

  • Type: Rear male hinge
  • Cylinder standard: ISO 15552
  • Series: 61 and 63 (also 40, 41, 60)
  • Material: Aluminium
  • Supply: 1 hinge + 4 screws
  • Bores: 32 to 100 mm, among the variants
  • Pairing: Mod. C/C-H female hinge and Mod. S pin
  • Item No.: L-41
  • Brand: CAMOZZI

Applications and Uses

  • Swinging mounting of ISO 15552 cylinders
  • Levers, tilting and arc movements
  • Automatic machines and equipment

More details

Brand
CAMOZZI
Code
CLL100
Manufacturer code
L-41-100
