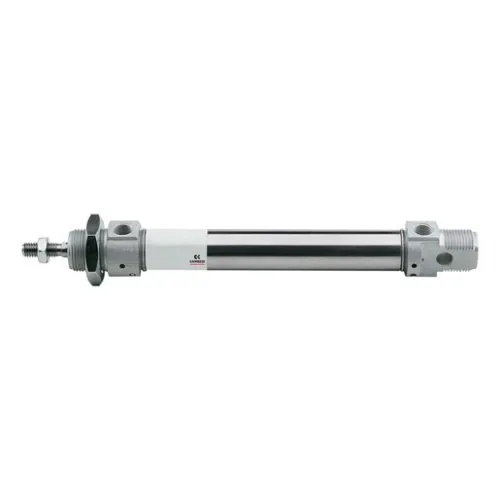

SPRING RETURN CYLINDER BORE 20 STROKE 25 24N1A20A025

Code: CL24N1A20A025
€32.70
VAT excluded: €26.89
In stock 1 piece in stock Ships in 24/48 hours

Description

ISO 6432 Mini Cylinder Camozzi Series 24 Bore 20 Stroke 25


Camozzi Series 24 mini cylinder, built to DIN/ISO 6432, magnetic, with 20 mm bore and 25 mm stroke. The magnetic piston allows position detection with Camozzi sensors, fitted with the S-CST-03 adapter. AISI 304 stainless steel barrel, 8 mm AISI 303 stainless steel rod with M8x1.25 thread, anodised aluminium end caps and fixed mechanical end-of-stroke cushions. M22x1.5 threaded body for fixing with a ring nut, flange or feet; G1/8 ports. It works up to 10 bar, from 0 to 80 °C, with filtered air. Supplied with ring nut and rod nut. The type of action is to be confirmed: the catalogue name indicates the single-acting version with spring return (24N1A), while code 24N2A corresponds to the double-acting one; please ask us before ordering.

Technical Specifications

  • Type: Magnetic mini cylinder
  • Action: to be confirmed (the name indicates single-acting 24N1A, the code double-acting 24N2A)
  • Standard: DIN/ISO 6432
  • Series: 24
  • Bore: 20 mm
  • Stroke: 25 mm
  • Ports: G1/8
  • Rod: AISI 303 stainless steel, Ø8 mm, M8x1.25 thread
  • Threaded body: M22x1.5
  • Maximum pressure: 10 bar
  • Brand: CAMOZZI

Applications and Uses

  • Light thrust and clamping
  • Compact equipment and machines
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL24N1A20A025
Manufacturer code
24N2A20A025

Attachments

Recommended accessories and spare parts

CAMOZZI SENSOR CST

€17.00
AVAILABLE
Availability: 5 In stock

Camozzi CST reed magnetic sensor for T-slot, NO contact, yellow LED, IP67, 2 m cable: CST-220 2-wire 10 to 110 V AC/DC and CST-232 3-wire PNP 5 to 30 V. Version among the variants.

CAMOZZI FLOW REGULATOR PMCU

€9.00
AVAILABLE
Availability: 20 In stock

Camozzi PMCU 706-1/4-8 one-way flow regulator for mounting on cylinders: G1/4 port, connection for Ø8 tube, manual knob and swivel fitting. Brass body, from 1 to 10 bar.

CAMOZZI HINGE MOD.C DIA.100

€27.10
Last one left!
Availability: 1 In stock

Camozzi Mod. C rear female hinge for ISO 15552 cylinders of Series 61 and 63: in aluminium, with 4 screws, bores from 32 to 100 mm among the variants; C-H version for 63-100 also usable at the front.

CAMOZZI HINGE MOD L

€26.50
AVAILABLE
Availability: 3 In stock

Camozzi Mod. L rear male hinge for ISO 15552 cylinders of Series 61 and 63: in aluminium, supplied with 4 screws, bores from 32 to 100 mm selectable among the variants.

CAMOZZI FRONT CLEVIS G

€2.30
Only 2 left!
Availability: 2 In stock

Camozzi Mod. G rod clevis to ISO 8140, in galvanised steel, for ISO 6432 mini cylinders and ISO 15552 cylinders: sizes from G-12-16 to G-80-100 selectable among the variants.
