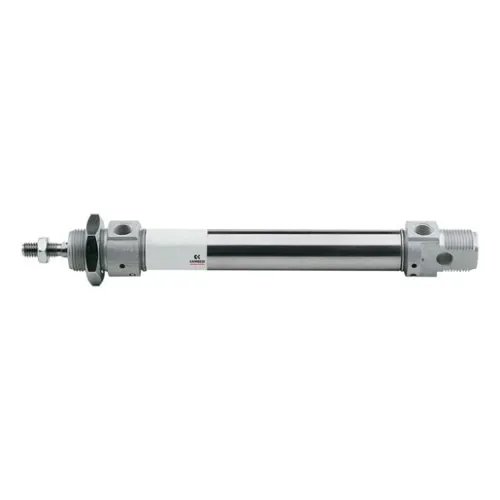

CAMOZZI MINI CYLINDERS BORE SERIES 24

Code: CL24N2A1650
€31.90
VAT excluded: €26.15
Size : BORE16-STROKE 40
In stock 2 pieces in stock Ships in 24/48 hours

Description

ISO 6432 Double-Acting Magnetic Mini Cylinders Camozzi Series 24


Camozzi Series 24 mini cylinders, built to DIN/ISO 6432, double-acting and magnetic, so ready for position sensors. AISI 304 stainless steel barrel, AISI 303 stainless steel rod, anodised aluminium end caps, fixed mechanical end-of-stroke cushions. 16 mm bore with 6 mm rod, M6x1 thread and M5 ports; 20 and 25 mm bores with 8 and 10 mm rods, M8x1.25 and M10x1.25 threads and G1/8 ports. The threaded body is fixed with a ring nut, flange or feet. Pressure from 1 to 10 bar, temperature from 0 to 80 °C. Supplied with ring nut and rod nut. Bore and stroke among the variants.

Technical Specifications

  • Type: Double-acting magnetic mini cylinders
  • Standard: DIN/ISO 6432
  • Series: 24
  • Bores: 16, 20, 25 mm, among the variants
  • Ports: M5 (Ø16), G1/8 (Ø20, Ø25)
  • Materials: AISI 304 stainless steel barrel, AISI 303 stainless steel rod
  • Operating pressure: 1 to 10 bar
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Stroke: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Thrust, clamping and small lifting
  • Equipment and automatic machines
  • Replacement of ISO 6432 mini cylinders

More details

Brand
CAMOZZI
Code
CL24N2A1650
Manufacturer code
24N2A16A040

Attachments

Recommended accessories and spare parts

CAMOZZI SENSOR CST

€17.00
AVAILABLE
Availability: 5 In stock

Camozzi CST reed magnetic sensor for T-slot, NO contact, yellow LED, IP67, 2 m cable: CST-220 2-wire 10 to 110 V AC/DC and CST-232 3-wire PNP 5 to 30 V. Version among the variants.

CAMOZZI FLOW REGULATOR PMCU

€9.00
AVAILABLE
Availability: 20 In stock

Camozzi PMCU 706-1/4-8 one-way flow regulator for mounting on cylinders: G1/4 port, connection for Ø8 tube, manual knob and swivel fitting. Brass body, from 1 to 10 bar.

CAMOZZI HINGE MOD.C DIA.100

€27.10
Last one left!
Availability: 1 In stock

Camozzi Mod. C rear female hinge for ISO 15552 cylinders of Series 61 and 63: in aluminium, with 4 screws, bores from 32 to 100 mm among the variants; C-H version for 63-100 also usable at the front.

CAMOZZI HINGE MOD L

€26.50
AVAILABLE
Availability: 3 In stock

Camozzi Mod. L rear male hinge for ISO 15552 cylinders of Series 61 and 63: in aluminium, supplied with 4 screws, bores from 32 to 100 mm selectable among the variants.

CAMOZZI FRONT CLEVIS G

€2.30
Only 2 left!
Availability: 2 In stock

Camozzi Mod. G rod clevis to ISO 8140, in galvanised steel, for ISO 6432 mini cylinders and ISO 15552 cylinders: sizes from G-12-16 to G-80-100 selectable among the variants.
