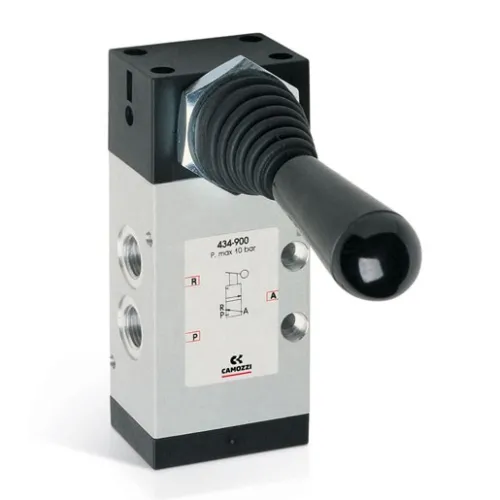

CAMOZZI MANUAL CONTROL VALVE SERIES 4

Code: CL434900
€60.90
VAT excluded: €49.92
Size : 434-900
In stock 2 pieces in stock Ships in 24/48 hours

Description

Manually Operated Valves Camozzi Series 4 G1/4


Camozzi manually operated valves of the Series 4 with G1/4 ports, built as spool valves with aluminium body, stainless steel spool and NBR seals, with a flow of 1250 Nl/min. Reference code 454-905 is a 5/2 with monostable lever, which returns to the rest position when released, and an operating force of 37 N. The variants include 3/2 and 5/2 with bistable lever, which stays in the chosen position, monostable lever and pull knob, and 5/3 closed and open centre valves with bistable or monostable lever. Pressure from -0.9 to 10 bar, ambient temperature from 0 to 60 °C. Model among the variants.

Technical Specifications

  • Type: 3/2, 5/2, 5/3 manually operated valves
  • Series: 4, spool
  • Ports: G1/4
  • Flow: 1250 Nl/min
  • 454-905: 5/2, monostable lever, 37 N
  • Operating pressure: -0.9 to 10 bar
  • Materials: Aluminium body, stainless steel spool, NBR seals
  • Ambient temperature: 0 to 60 °C, fluid 0 to 50 °C
  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Manual control of large-bore cylinders
  • Control panels and workstations
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL434900
Manufacturer code
434-900
