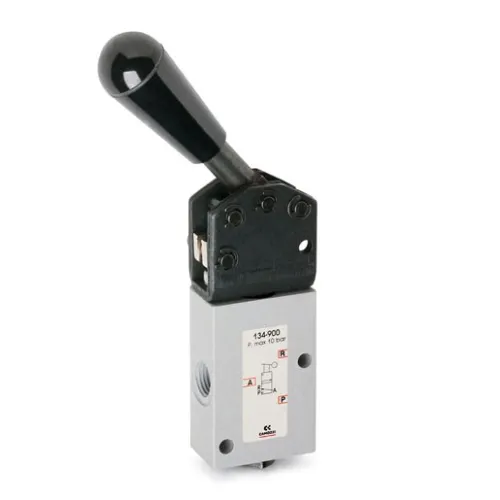

CAMOZZI MANUAL CONTROL VALVE SERIES 1

Code: CL134900
€46.60
VAT excluded: €38.20
Size : 134-900
In stock 1 piece in stock Ships in 24/48 hours

Description

Camozzi Series 1 Manually Operated Valves


Camozzi Series 1 manually operated valves, poppet type, with an aluminium body, brass poppet and NBR seals. The reference code 138-900 is a normally closed 3/2 with G1/8 ports, bistable lever operation, flow 500 Nl/min and actuating force of 25 N. Among the variants are the 134-900, a G1/4 3/2 lever valve with 1250 Nl/min; the 138-935, a G1/8 3/2 with monostable push button; the 154-900 and 158-900, bistable lever 5/2 in G1/4 and G1/8; and the 158-945, a G1/8 5/2 with front mechanical actuation. All work from 0 to 10 bar with an ambient temperature from 0 to 60 °C. Model among the variants.

Technical Specifications

  • Type: Manually operated 3/2 NC and 5/2 valves
  • Series: 1, poppet
  • Ports: G1/8 (500 Nl/min) or G1/4 (1250 Nl/min)
  • 138-900: 3/2 NC G1/8, bistable lever, 25 N
  • Working pressure: 0 to 10 bar
  • Materials: Aluminium body, brass poppet, NBR
  • Ambient temperature: 0 to 60 °C, fluid 0 to 50 °C
  • Model: selectable from the variants
  • Brand: CAMOZZI

Applications and Uses

  • Manual control of cylinders and circuits
  • Shut-off and diversion of air on machines
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL134900
Manufacturer code
134-900
