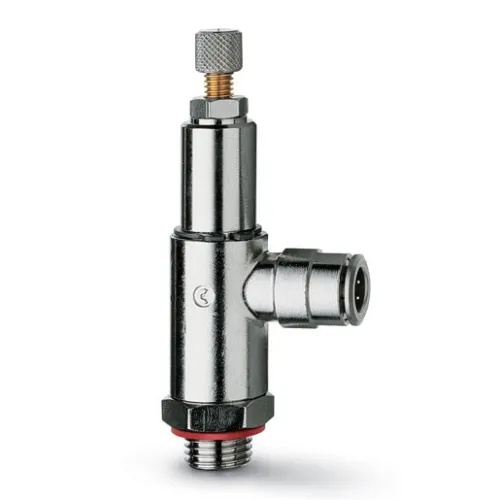

CAMOZZI REGULATING VALVE GMVU

Camozzi conveyors with ducted exhausts

Terminal module

Mod. CNVL-*H

Magnetic sensors with 2 or 3-wire cable for T-slot

Mod. CST

Operation Reed NC

Supply voltages 3-wire cst (PNP)

Series name CS

Cable length 2 m

Connections 3 wires

Slot type T-slot

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Base plates for 210,220

Foot mounting mod B

Material of feet and ring nut: galvanised steel

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

Silenced exhaust regulator

Rear male hinge mounting Mod. L

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170; 2905.

Intermediate hinge mounting Mod. F

Flange mounting

Mod. D

MINI CYLINDER MOUNTING E

Assembly screws (Kit E)

CAMOZZI CLEVIS FOR CYLINDER MOD. G

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!
