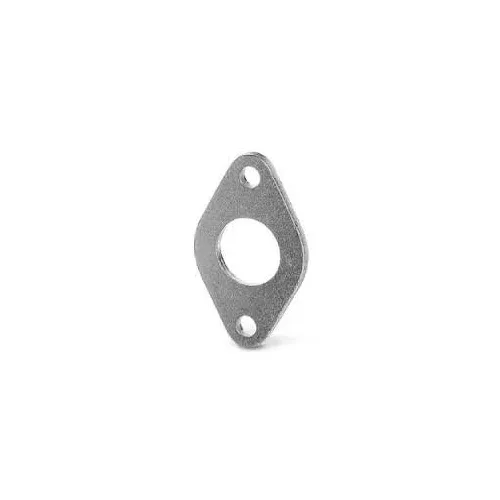

CAMOZZI FLANGE MOD.E

CAMOZZI MOUNTING BRACKET MOD. C114 ST

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Adjustable diaphragm pressure switches

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

MINI CYLINDER MOUNTING E

For mounting on valves.

Adjustment by means

of a screwdriver.

Materials:

Clamp in engineering polymer, O-ring in NBR, nuts and screws in galvanised steel.

Camozzi Hinge Mod C

Foot mounting mod B

Material of feet and ring nut: galvanised steel

VSO, VSC series

VSO series ports: M5, G1/8, Ø4 cartridge

VSC series ports: G1/8, G1/4, G1/2

VSC and VSO series quick exhaust valves are commonly used to increase the speed of cylinders or to quickly depressurise tanks containing compressed air.

Model VSO 425-M5, VSO 426-04: particularly suitable for mounting on valves and solenoid valves with built-in ø 4 cartridge.

Model VSO 4-1/8: particularly suitable for direct mounting on the actuator connection. The incoming air from the fitting side (1) is used on the threaded side (2); exhaust (3) takes place through the holes on the side of the valve body.

Model VSC: particularly suitable for mounting directly, by means of a nipple, on the cylinder ports. Fitting a silencer on the exhaust is recommended.

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

CAMOZZI PIN MOD.S

Base plates for 210,220

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.
