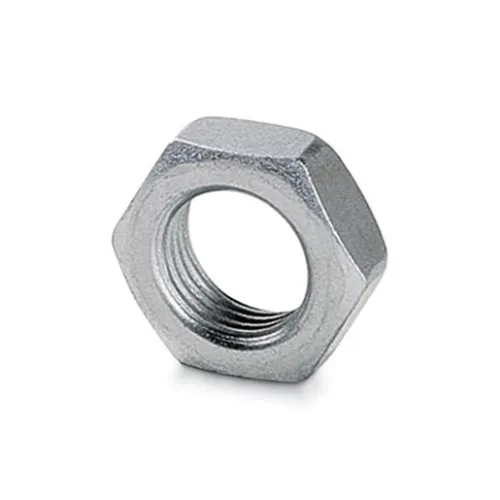

CAMOZZI NUT MOD. U

Flange mounting

Mod. E

Base plates for 210,220

Camozzi Hinge Mod C

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170; 2905.

Assembly screws (Kit E)

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Foot mounting mod B

Material of feet and ring nut: galvanised steel

For mounting on single-acting and double-acting cylinders.

Adjustment by means

of a manually operated knob.

Flange mounting

Mod. D

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

CAMOZZI PIN MOD.S

Series name MC

Component 3/2-WAY VALVE

Construction type Electro-pneumatic control

Size G3/8 - G1/2

Connections G3/8

For mounting on valves.

Adjustment by means

of a screwdriver.

Camozzi conveyors with ducted exhausts

VSO, VSC series

VSO series ports: M5, G1/8, Ø4 cartridge

VSC series ports: G1/8, G1/4, G1/2

VSC and VSO series quick exhaust valves are commonly used to increase the speed of cylinders or to quickly depressurise tanks containing compressed air.

Model VSO 425-M5, VSO 426-04: particularly suitable for mounting on valves and solenoid valves with built-in ø 4 cartridge.

Model VSO 4-1/8: particularly suitable for direct mounting on the actuator connection. The incoming air from the fitting side (1) is used on the threaded side (2); exhaust (3) takes place through the holes on the side of the valve body.

Model VSC: particularly suitable for mounting directly, by means of a nipple, on the cylinder ports. Fitting a silencer on the exhaust is recommended.

The circuit selector Mod. SCS-668-06 allows two signals coming alternately from two different points to be channelled to the same point.
