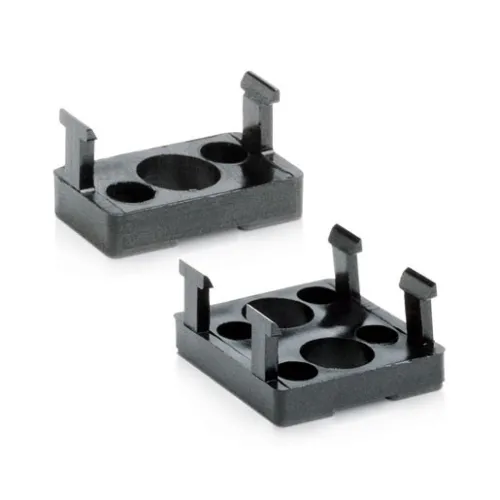

CAMOZZI DEVICE FOR MINI VALVE 210-000

Camozzi Hinge Mod C

Intermediate hinge mounting Mod. F

Accessory for fixing the inductive sensor that detects the presence of the tool.

Supplied with: fixing screws

Sensor not included in the kit.

Silenced exhaust regulator

One-way (VBU) and two-way (VBO) valves

Connections G1/8, G1/4, G3/8 and G1/2

Tube diameters: 6, 8, 10, 12 mm

These one-way and two-way blocking valves have been designed to allow direct mounting on cylinders.

They can be used as high-flow valves for blowing, cleaning parts and filling volumes.

For these applications it is recommended to connect the supply to connection 2 (the one with the male thread).

Direct mounting on fluid distribution and control blocks is also possible.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Assembly screws (Kit E)

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170; 2905.

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

The one-way flow regulators are available with connections M5, G1/8, G1/4, G3/8 and G1/2.

The G1/8 and G1/4 connections are available with two different types of adjustment (see diagrams).

The M5, G3/8 and G1/2 connections, on the other hand, have only one type of adjustment.

All models can be mounted equally well on a panel, on cylinders or on a wall.

To choose the most suitable model, it is recommended to:

1. Calculate the air quantity in Nl/min

2. Determine the time in which the cylinder must complete its stroke;

3. Check the flow rate diagrams.

Flange mounting

Mod. E

For mounting on valve.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170.

Accessory for mounting valves on the cylinder
