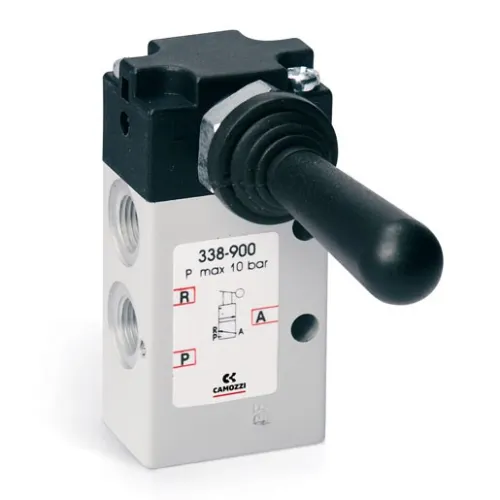

CAMOZZI MANUAL CONTROL VALVE SERIES 3

Code: CL338900
€28.90
VAT excluded: €23.69
Size : 338-900
In stock 4 pieces in stock Ships in 24/48 hours

Description

Manually Operated Valves Camozzi Series 3 G1/8


Camozzi manually operated valves of the Series 3 with G1/8 ports, built as spool valves with aluminium body, stainless steel spool and NBR seals. Reference code 368-905 is a 5/3 closed centre valve with monostable lever, which returns to the centre when released, flow 500 Nl/min and force 20 N. The variants include 3/2 and 5/2 valves of 700 Nl/min with bistable or monostable lever, pull knob and bistable switch, and 5/3 valves with closed or open centres. The 3/2 valves are normally closed if supplied at 1 and open if supplied at 3. Pressure from -0.9 to 10 bar, ambient temperature from 0 to 60 °C.

Technical Specifications

  • Type: 3/2, 5/2, 5/3 manually operated valves
  • Series: 3, spool
  • Ports: G1/8
  • Flow: 700 Nl/min (3/2, 5/2), 500 Nl/min (5/3)
  • 368-905: 5/3 CC, monostable lever, 20 N
  • Operating pressure: -0.9 to 10 bar
  • Materials: Aluminium body, stainless steel spool, NBR seals
  • Ambient temperature: 0 to 60 °C, fluid 0 to 50 °C
  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Manual control of double-acting cylinders
  • Control panels and workstations
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL338900
Manufacturer code
338-900

Attachments

Recommended accessories and spare parts

CAMOZZI NIPPLE ART. 2501

€2.09
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI SILENCER ART. 2921

€4.48
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).

CAMOZZI FITTING ART.6512

€1.20
AVAILABLE
Availability: 6 In stock

Camozzi 6512 straight male fitting, Series 6000 super-rapid: connection for 4 mm tube and metric male thread M5 or M6 among the variants. Nickel-plated brass, up to 16 bar, weight 4-6 g.

CAMOZZI FITTING ART.6510

€2.48
AVAILABLE
Availability: 40 In stock

Camozzi S6510 Sprint straight male fitting, Series 6000 super-rapid: tube connection and G male thread with PTFE sealing ring. Tube from 4 to 14 mm and thread from 1/8 to 1/2 among the variants.
