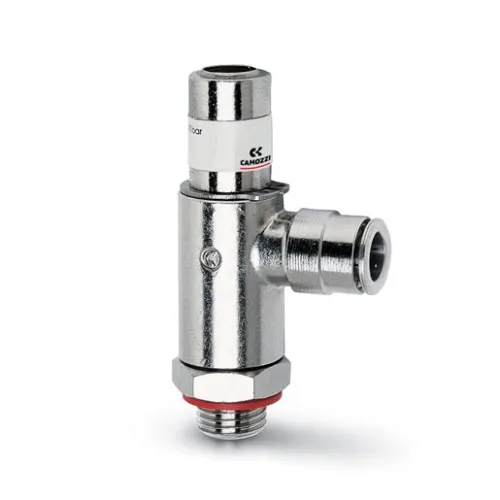

CAMOZZI FLOW RATE REGULATING VALVE GSCU

CAMOZZI PIN MOD.S

Rear male hinge mounting Mod. L

Single sub-base with side outlets ISO 5599/1

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Silenced exhaust regulator

Model ZC

CETOP RP 107P

Material:

aluminium

Supplied with:

1x male bracket

Adjustable diaphragm pressure switches

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

Accessory for mounting valves on the cylinder

Terminal module

Mod. CNVL-*H

Magnetic sensors with 2 or 3-wire cable for T-slot

Mod. CST

Operation Reed NC

Supply voltages 3-wire cst (PNP)

Series name CS

Cable length 2 m

Connections 3 wires

Slot type T-slot

Since the speed of a cylinder is regulated by restricting the air of the chamber that is exhausting, it is recommended to connect the threaded port of valve 1 to the cylinder inlet and port 2 to the valve user port.

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

Adjustment by means of a manually operated knob. Connections M5, G1/8 and G1/4.

Can be assembled with swivel fittings models 6610; 6620; 1610; 1620; 2023; 1170; 2905.

For mounting on single-acting and double-acting cylinders.

Adjustment by means of a manually operated knob.

Connections: M5, G1/8, G1/4 and G3/8.

M5 connection: swivelling brass body
