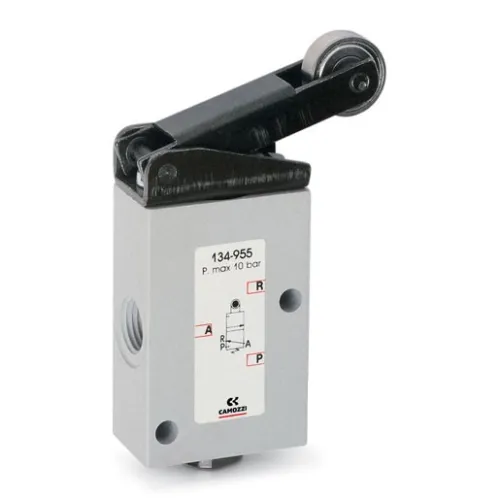

CAMOZZI MECHANICAL CONTROL VALVE

Code: CL134955
€35.60
VAT excluded: €29.18
Size : .134-955
In stock 4 pieces in stock Ships in 24/48 hours

Description

Camozzi Series 1 Mechanically Operated Valves


Camozzi Series 1 mechanically operated valves, poppet type with spring return: they are actuated by the passing of a cam, a workpiece or a machine part and serve as limit switches and pneumatic enabling signals. The reference code 134-955 is a normally closed 3/2 with G1/4 ports and roller lever, 1250 Nl/min, force 41 N at 6 bar. Among the variants are 3/2 NC and NO in G1/8 at 500 Nl/min with front actuation, roller lever or one-way roller, and 5/2 in G1/8 and G1/4 with roller lever. Aluminium body, brass poppet, NBR; pressure from 0 to 10 bar.

Technical Specifications

  • Type: Mechanically operated 3/2 and 5/2 valves
  • Series: 1, poppet
  • Actuators: Front, roller lever, one-way roller
  • Ports: G1/8 (500 Nl/min) or G1/4 (1250 Nl/min)
  • 134-955: 3/2 NC G1/4, roller lever, 41 N
  • Working pressure: 0 to 10 bar
  • Materials: Aluminium body, brass poppet, NBR
  • Ambient temperature: 0 to 60 °C, fluid 0 to 50 °C
  • Model: selectable from the variants
  • Brand: CAMOZZI

Applications and Uses

  • Limit switches and pneumatic enabling signals
  • Detecting cams and moving parts
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL134955
Manufacturer code
134-955
