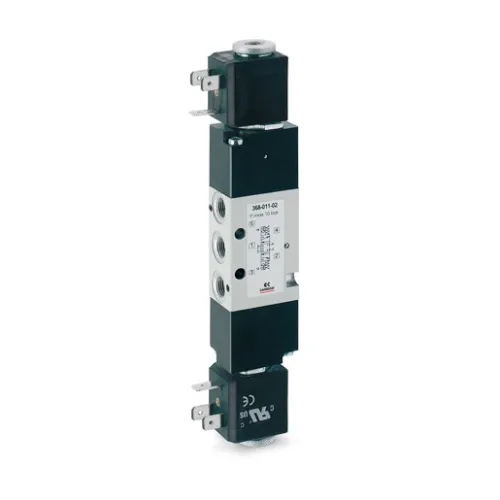

CAMOZZI 368-011 SOLENOID VALVE WITHOUT COILS

Code: CL36801102
€72.70
VAT excluded: €59.67
In stock 2 pieces in stock Ships in 24/48 hours

Description

5/3 Closed Centre Solenoid Valve Camozzi Series 3 G1/8 - Item No. 368-011-02


Camozzi 368-011-02 solenoid valve of the Series 3, 5/3 closed centre distributor with G1/8 ports and double electropneumatic control with internal pilot operation. With both coils de-energised the valve goes to the centre and closes all ports, locking the cylinder in the position it is in: it is the choice for intermediate stops and safety. Balanced spool construction with aluminium body, stainless steel spool and NBR seals; bistable manual override as standard. Nominal flow 700 Nl/min, pressure from 2 to 10 bar, temperature from 0 to 60 °C. It is supplied without coils: two 22x22 solenoids of the U7 or G7 Series are fitted.

Technical Specifications

  • Type: 5/3 closed centre solenoid valve
  • Series: 3
  • Ports: G1/8
  • Control: Double solenoid, internal pilot operation
  • Nominal flow: 700 Nl/min
  • Operating pressure: 2 to 10 bar
  • Temperature: 0 to 60 °C (from -20 °C with dry air)
  • Materials: Aluminium body, stainless steel spool, NBR seals
  • Supply: Without coils (22x22 U7 or G7 solenoids)
  • Item No.: 368-011-02
  • Brand: CAMOZZI

Applications and Uses

  • Intermediate stops of cylinders
  • Control of double-acting cylinders with safety
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL36801102
Manufacturer code
368-011-02

Attachments

Recommended accessories and spare parts

CAMOZZI COIL MOD. SERIES A.. U..

€10.10
AVAILABLE
Availability: 7 In stock

Camozzi Series U7 22x22 coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-B connection, IP65 with connector, continuous duty. Voltages from 12 V to 230 V among the variants.

CAMOZZI COIL SERIES A8

€15.00
AVAILABLE
Availability: 6 In stock

Camozzi Series A8 30x30 PPS coil for Series A, 3, 4, 9 and NA solenoid valves: DIN EN 175 301-803-A connection, class H, IP65 with connector. A83 24 V DC, A8B 24 V AC, A8D 110 V AC, A8E 220 V AC.

CAMOZZI SILENCER ART. 2921

€4.50
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).
