CAMOZZI MINI VALVE 235-000

Code: CL235000
€17.50
VAT excluded: €14.34
In stock 2 pieces in stock Ships in 24/48 hours

Description

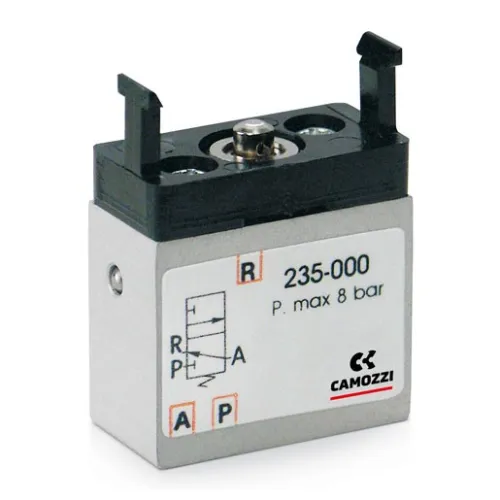

3/2 NC M5 Panel Mini Valve Camozzi Series 2 - Item No. 235-000


Camozzi 235-000 valve body of the Series 2 manual panel mini valves: 3/2 normally closed valve with M5 ports, poppet construction. It is fixed on the panel and completed with a control device of the series, 200 codes, chosen among push button, palm push button, two- or three-position selector, lever, key or pedal: so a single valve body gives different controls. Aluminium body, brass poppet, NBR seals. It works from 2 to 8 bar with a flow of 60 Nl/min; ambient temperature from 0 to 60 °C. For 4 mm tube with cartridge-type ports the equivalent body is the 234-000.

Technical Specifications

  • Type: 3/2 NC panel valve body
  • Series: 2 manual mini valves
  • Ports: M5
  • Operating pressure: 2 to 8 bar
  • Flow: 60 Nl/min
  • Control: 200 device to be ordered separately
  • Materials: Aluminium body, brass poppet, NBR
  • Ambient temperature: 0 to 60 °C, fluid 0 to 50 °C
  • Item No.: 235-000
  • Brand: CAMOZZI

Applications and Uses

  • Pneumatic control panels and consoles
  • Manual signals and controls on machines
  • Pneumatic logic circuits

More details

Brand
CAMOZZI
Code
CL235000
Manufacturer code
235-000
