Description

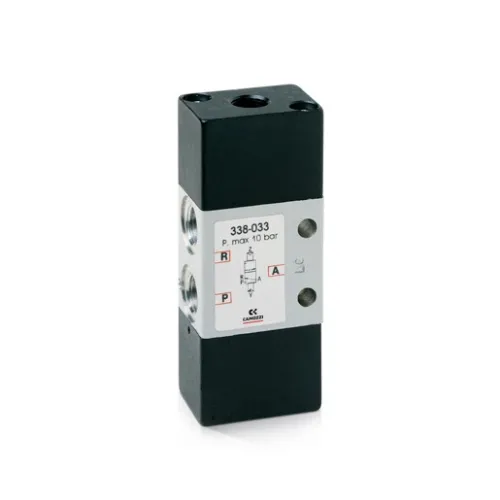

Pneumatically Operated Valves Camozzi Series 3
Camozzi pneumatically operated valves of the Series 3, built with balanced spool, aluminium body, stainless steel spool and NBR seals: an air signal on the pilot switches the valve, with no electrical parts. The variants include the 338-033, 3/2 G1/8 bistable, and the 338-035, 3/2 G1/8 spring return, both 700 Nl/min, with minimum piloting of 1.5 and 2.5 bar; the 358-035, 5/2 G1/8 spring return, 700 Nl/min; the 354-035, 5/2 G1/4 spring return, 1300 Nl/min and minimum piloting 3 bar. The 3/2 valves become normally open if supplied from port 3. Pressure from -0.9 to 10 bar.
Technical Specifications
- Type: 3/2 and 5/2 pneumatically operated valves
- Series: 3, balanced spool
- Ports: G1/8 (700 Nl/min) or G1/4 (1300 Nl/min)
- Return: Bistable or spring depending on model
- Minimum pilot pressure: 1.5 to 3 bar depending on model
- Operating pressure: -0.9 to 10 bar
- Materials: Aluminium body, stainless steel spool, NBR seals
- Temperature: 0 to 60 °C (from -20 °C with dry air)
- Model: selectable among the variants
- Brand: CAMOZZI
Applications and Uses
- Fully pneumatic circuits
- Amplification of pneumatic signals
- Automatic machines, test benches and pneumatic panels
More details
- Brand
- CAMOZZI
- Code
- CL338033
- Manufacturer code
- 338-033
