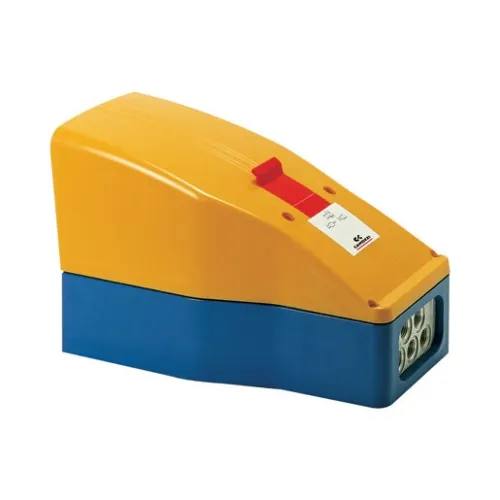

CAMOZZI PEDAL VALVE 354-925

Code: CL358925
€80.30
VAT excluded: €65.82
Size : PED.PNEUM.
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Foot Pedal Valve Camozzi Series 3 Pneumatic or Electric


Camozzi Series 3 pedal, to control a machine with the foot and keep the hands free. The housing is in engineering polymer and under the red cover there is the selector that makes the pedal monostable, active only while pressed, or bistable. Pneumatic version 354N-925: 5/2 valve with G1/4 ports, pilot-operated spool, aluminium body, stainless steel spool, NBR, from 2.5 to 8 bar, 650 Nl/min, operating force 17 N at 6 bar. Electric version 3E2-925: microswitch with single-pole changeover contact, PG9 cable gland, IP20 protection. Ambient temperature from 0 to 50 °C. Choose the version among the variants.

Technical Specifications

  • Type: Foot pedal control
  • Series: 3
  • Pneumatic 354N-925: 5/2 G1/4, 2.5 to 8 bar, 650 Nl/min
  • Electric 3E2-925: Single-pole changeover microswitch, PG9, IP20
  • Operation: Monostable or bistable with selector
  • Housing: Engineering polymer
  • Ambient temperature: 0 to 50 °C
  • Version: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Foot controls on presses and equipment
  • Workstations with busy hands
  • Starting cycles on machines and benches

More details

Brand
CAMOZZI
Code
CL358925
Manufacturer code
354N-925

Attachments

Recommended accessories and spare parts

CAMOZZI NIPPLE ART. 2501

€2.09
AVAILABLE
Availability: 24 In stock

Camozzi Mod. 2501 metric-parallel nipple: double male with equal parallel G threads, in nickel-plated brass, to join two female threaded components. Series 2000. Sizes 1/8 to 1/2 among the variants.

CAMOZZI SILENCER ART. 2921

€4.50
AVAILABLE
Availability: 33 In stock

Camozzi Mod. 2921 silencer with sintered bronze element and copper-plated steel body, for valve exhausts: G1/8 to G3/4 among the variants, up to 10 bar. G1/8: 1730 Nl/min, 81 dB(A).

CAMOZZI FITTING ART.6512

€1.20
AVAILABLE
Availability: 6 In stock

Camozzi 6512 straight male fitting, Series 6000 super-rapid: connection for 4 mm tube and metric male thread M5 or M6 among the variants. Nickel-plated brass, up to 16 bar, weight 4-6 g.

CAMOZZI FITTING ART.6510

€2.50
AVAILABLE
Availability: 40 In stock

Camozzi S6510 Sprint straight male fitting, Series 6000 super-rapid: tube connection and G male thread with PTFE sealing ring. Tube from 4 to 14 mm and thread from 1/8 to 1/2 among the variants.
