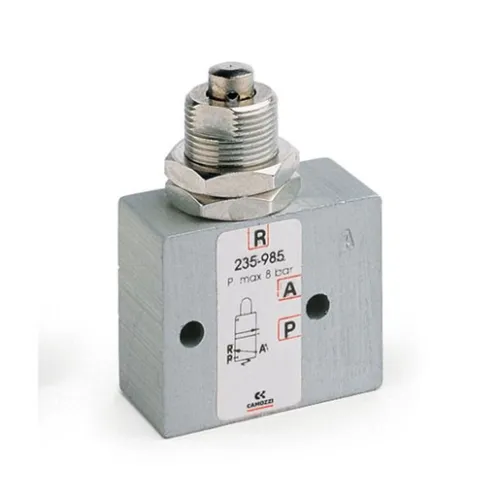

CAMOZZI MANUAL CONTROL VALVE 235-985

Series name 2

Reset Detent

Devices 2-position selector

Series name 2

Reset Detent

Ports Cartridge ø 4

Function 3/2-way NC

Series name 2

Reset Detent

Ports M5

Function 3/2-way NC

The Series 3 (from G1/8) and Series 4 (from G1/4) 3/2, 5/2 and 5/3-way manual valves are available with different actuating devices to suit a variety of uses.

Series 1 is available with two devices: 3/2-way push button and 3/2 and 5/2-way manual lever.

DATA SHEET IN THE ATTACHMENTS TO FIND THE RIGHT VALVE

Series name 2

Reset Spring return

Devices Palm

The pedal is available in both pneumatic and electric versions.

The pneumatic version is available with a 5/2-way and 3/2 NC valve with M5 and G1/4 ports and 4/2 tube.

The front pneumatic connections make it easy to fit fittings and silencers.

The electric version in series 3 is available with a microswitch with single-pole changeover contacts; the cable outlet is at the front (PG9).

The series 3 pedal can be used with bistable or monostable function, by positioning the selector located under the red flap as shown in the drawing (X).

CAMOZZI VALVE 354N194 PEDAL UNIT SPARE PART
