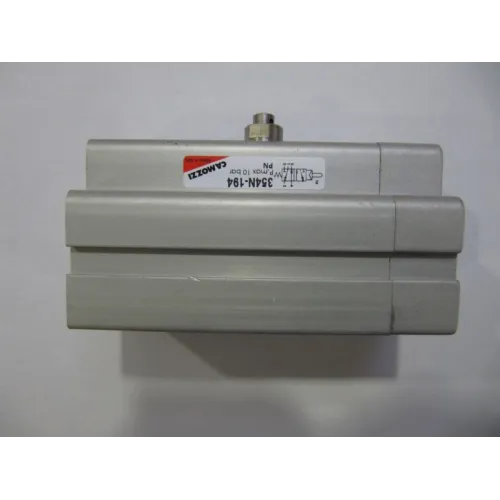

CAMOZZI 354N-194 VALVE PEDAL UNIT SPARE PART

Series name 2

Reset Detent

Ports Cartridge ø 4

Function 3/2-way NC

Series name 2

Reset Detent

Ports M5

Function 3/2-way NC

Series name 2

Reset Detent

Devices 2-position selector

The pedal is available in both pneumatic and electric versions.

The pneumatic version is available with a 5/2-way and 3/2 NC valve with M5 and G1/4 ports and 4/2 tube.

The front pneumatic connections make it easy to fit fittings and silencers.

The electric version in series 3 is available with a microswitch with single-pole changeover contacts; the cable outlet is at the front (PG9).

The series 3 pedal can be used with bistable or monostable function, by positioning the selector located under the red flap as shown in the drawing (X).

Series name 2

Reset Spring return

Actuation Front panel actuation

Ports M5

Function 3/2-way NC

Series name 2

Reset Spring return

Devices Palm

The Series 3 (from G1/8) and Series 4 (from G1/4) 3/2, 5/2 and 5/3-way manual valves are available with different actuating devices to suit a variety of uses.

Series 1 is available with two devices: 3/2-way push button and 3/2 and 5/2-way manual lever.

DATA SHEET IN THE ATTACHMENTS TO FIND THE RIGHT VALVE
