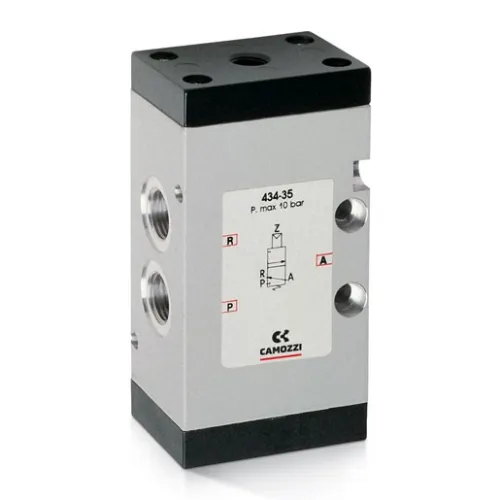

CAMOZZI PNEUMATIC CONTROL VALVE SERIES 4

Code: CL43435 EAN: 8051707463416
€42.50
VAT excluded: €34.84
Size : 434-35
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Pneumatically Operated Valves Camozzi Series 4


Camozzi pneumatically operated valves of the Series 4, balanced spool distributors controlled by an air signal, without electrical parts. The variants include 3/2 in G1/8 and G1/4, bistable or spring return; 5/2 in G1/8 of 700 Nl/min, bistable, differential or spring return; 5/2 in G1/4 of 1250 Nl/min; the 452C-33, 5/2 G1/2 bistable of 2500 Nl/min; and the 464-33, 5/3 closed centres in G1/4. Operating pressure from -0.9 to 10 bar, minimum piloting from 2 to 2.5 bar depending on model. Aluminium body, stainless steel spool, NBR and PU seals, temperature from 0 to 60 °C. Model among the variants.

Technical Specifications

  • Type: 3/2, 5/2, 5/3 pneumatically operated valves
  • Series: 4, balanced spool
  • Ports: G1/8, G1/4, G1/2 depending on model
  • Flow: from 700 to 2500 Nl/min depending on port
  • Control: Bistable, differential or spring return
  • Operating pressure: -0.9 to 10 bar
  • Materials: Aluminium, stainless steel spool, NBR and PU
  • Temperature: 0 to 60 °C (from -20 °C with dry air)
  • Model: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Fully pneumatic circuits
  • Control of large-bore cylinders
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL43435
EAN13
8051707463416
Manufacturer code
434-35
