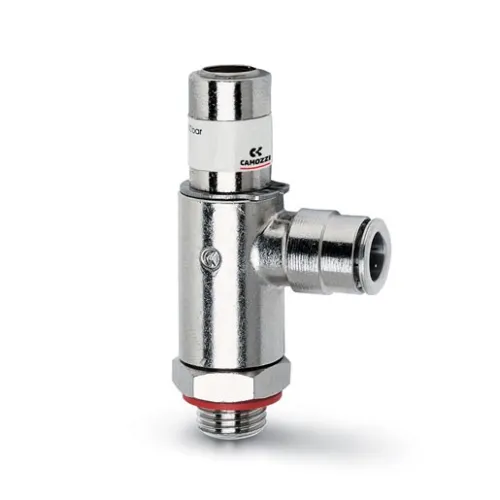

CAMOZZI REGULATING VALVE GSCU

Accessory for mounting valves on the cylinder

Threaded version sizes: M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1

Tube/Tube version sizes: Ø4, Ø6, Ø8, Ø10, Ø12

The VNR series one-way valves are available in the threaded variant or with integrated fitting; the type of construction allows low operating pressures.

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

CAMOZZI PIN MOD.S

Camozzi conveyors with ducted exhausts

CAMOZZI SEAL KIT FOR CYLINDERS

CONTACT US FOR INFORMATION ON WHICH TO ORDER!

VSO, VSC series

VSO series ports: M5, G1/8, Ø4 cartridge

VSC series ports: G1/8, G1/4, G1/2

VSC and VSO series quick exhaust valves are commonly used to increase the speed of cylinders or to quickly depressurise tanks containing compressed air.

Model VSO 425-M5, VSO 426-04: particularly suitable for mounting on valves and solenoid valves with built-in ø 4 cartridge.

Model VSO 4-1/8: particularly suitable for direct mounting on the actuator connection. The incoming air from the fitting side (1) is used on the threaded side (2); exhaust (3) takes place through the holes on the side of the valve body.

Model VSC: particularly suitable for mounting directly, by means of a nipple, on the cylinder ports. Fitting a silencer on the exhaust is recommended.

Rear male hinge mounting Mod. L

Mod. U

UNI EN ISO 4035

Material:

galvanised steel

One-way flow regulators

for mounting on single-acting

and double-acting cylinders.

Adjustment by means

of a hexagon key or a manually

operated knob.

Connections G1/8, G1/4, G3/8, G1/2

Swivelling one-way and two-way flow regulators

with nominal diameter 1, 5 - 3,5 - 5 mm

Connections: M5, G1/8, G1/4

These one-way and two-way flow regulators have been designed to be mounted directly on valves or cylinders, keeping overall dimensions to a minimum.

The flow rate adjustment characteristic is very wide and gradual, so use is very precise at both the minimum and the maximum flow rate.

CAMOZZI CLEVIS FOR CYLINDER MOD. G

Series name MC

Component 3/2-WAY VALVE

Construction type Electro-pneumatic control

Size G3/8 - G1/2

Connections G3/8

Two-way flow regulators.

Adjustment by means

of a hexagon key or a manually operated knob.

Connections G1/8, G1/4, G3/8, G1/2

One-way (VBU) and two-way (VBO) valves

Connections G1/8, G1/4, G3/8 and G1/2

Tube diameters: 6, 8, 10, 12 mm

These one-way and two-way blocking valves have been designed to allow direct mounting on cylinders.

They can be used as high-flow valves for blowing, cleaning parts and filling volumes.

For these applications it is recommended to connect the supply to connection 2 (the one with the male thread).

Direct mounting on fluid distribution and control blocks is also possible.

Silenced exhaust regulator
